- Unit of Measure - Inch
- Solid Brass Construction
- Made in USA
- Barb design retains hose

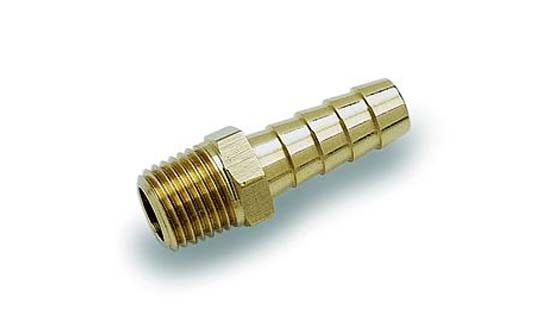

Male Hose Barbs
PCS Company offers Male Hose Barbs for connecting needs. The barb-like rings allow for an easy push-connection. Hose Clamps need to be used when attaching the rubber hose to the hose barb. Male hose barb fitting support hose I.D. from 1/4" to 5/8".
| Item Number | Hose I.D. | Pipe Size | Material Type | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|
| B100-6 | 5/8" | 3/8" | Brass | $1.80 | ||
| B100-8 | 5/8" | 1/2" | Brass | $2.90 | ||
| B250-1 | 1/4 | 1/8 | Brass | $0.97 | ||
| B250-2 | 1/4 | 1/4 | Brass | $1.25 | ||
| B250-3 | 1/4 | 3/8 | Brass | $1.84 | ||
| B312-1 | 5/16 | 1/8 | Brass | $1.09 | ||
| B312-2 | 5/16 | 1/4 | Brass | $1.35 | ||
| B375-1 | 3/8 | 1/8 | Brass | $1.16 | ||
| B375-2 | 3/8 | 1/4 | Brass | $1.34 | ||
| B375-3 | 3/8 | 3/8 | Brass | $1.78 | ||
| B500-2 | 1/2 | 1/4 | Brass | $1.65 | ||
| B500-3 | 1/2 | 3/8 | Brass | $1.91 | ||
| B500-4 | 1/2 | 1/2 | Brass | $3.18 | ||
| B700-4 | 3/4 | 1/2 | Brass | $3.65 |
