- Sold in 100', 200' or 300' reel depending on hose size
- Compliant with FDA USDA 3-A and NSF-51
- Pressure rating between 65 and 250 psi
- Nominal ID from 3/16" to 2"
- Temperature ratings: 25F to 150F

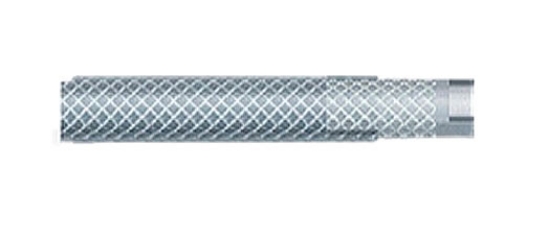

Clear Reinforced PVC Hose
PCS Company's Clear Reinforced PVC Hose is an economical food-quality hose for air, water, oil, mild chemicals, and alkalis. The hose has a clear smooth cover of PVC that is reinforced with multiple layers of synthetic yarns. The temperature rating for this hose is -5C to +65C(+25F to +15F). Compliant with applicable requirements and standards of FDA USDA 3-A and NSF-51. Working pressure ratings are based on 20C (68F). At an operating temperature of +65C (150F) reduce the working pressure by 50%. Recommended to be used with barbed fittings.
| Item Number | Weight(lbs.) | Nominal ID | Nominal OD | PSI | Package | Weight per Ft # | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| CRPVC-019 | 15 | 3/16" | .38 | 250 | 300' | .05 | $141.43 | ||
| CRPVC-025 | 21 | 1/4" | .43 | 250 | 300' | .07 | $107.14 | ||
| CRPVC-025-100 | 7 | 1/4" | .43 | 250 | 100' | .07 | $35.71 | ||
| CRPVC-031 | 24 | 5/16" | .53 | 300 | 300' | .08 | $162.86 | ||
| CRPVC-031-100 | 8 | 5/16" | .53 | 300 | 100' | .08 | $54.29 | ||
| CRPVC-038 | 27 | 3/8" | .59 | 250 | 300' | .09 | $154.29 | ||
| CRPVC-038-100 | 9 | 3/8" | .59 | 250 | 100' | .09 | $51.43 | ||
| CRPVC-050 | 45 | 1/2" | .71 | 250 | 300' | .15 | $210.00 | ||
| CRPVC-050-100 | 15 | 1/2" | .71 | 250 | 100' | .15 | $70.00 | ||
| CRPVC-063 | 51 | 5/8" | .87 | 200 | 300' | .17 | $278.57 | ||
| CRPVC-063-100 | 17 | 5/8" | .87 | 200 | 100' | .17 | $92.86 | ||
| CRPVC-075 | 69 | 3/4" | 1.02 | 180 | 300' | .23 | $360.00 | ||
| CRPVC-075-100 | 23 | 3/4" | 1.02 | 180 | 100' | .23 | $120.00 | ||
| CRPVC-100 | 96 | 1" | 1.3 | 150 | 200' | .32 | $345.71 | ||
| CRPVC-100-100 | 32 | 1" | 1.3 | 150 | 100' | .32 | $172.86 | ||
| CRPVC-125 | 58 | 1-1/4" | 1.61 | 100 | 100' | .58 | $294.29 | ||
| CRPVC-150 | 69 | 1-1/2" | 1.89 | 85 | 100' | .69 | $357.14 | ||
| CRPVC-200 | 100 | 2" | 2.44 | 65 | 100' | 1 | $612.86 |
