- Unit of Measure - Inch
- Provides maximum cooling rates
- Hollow throughout Stainless Steel construction
- Lengths available up to 48”
- Use as a stand alone component or in Rear-Load Cascades

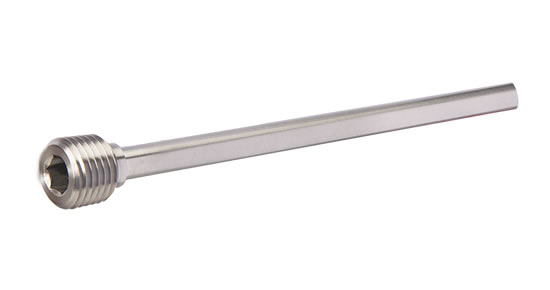

Piston Tubes
PCS Company's Piston Tubes have a stainless steel construction which provides maximum cooling rates. These tubes are known for their high strength and reliable performance. The piston tubes come in standard length - 12", 24", 36" and 48". The mold coolant flows througha flush seal pipe plug nd stainless high flow tube. These tubes can be uses as a stand alone or with Rear Load Cascades
| Item Number | Pipe Size (NPT) | Tube O.D. | Tube I.D. | Hex Wrench | OAL | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|
| PT12-375-12 | 1/2 | .365 | .340 | 3/8 | 12 | $12.65 | ||
| PT12-375-18 | 1/2 | .365 | .340 | 3/8 | 18 | $14.15 | ||
| PT12-375-24 | 1/2 | .365 | .340 | 3/8 | 24 | $15.48 | ||
| PT12-375-36 | 1/2 | .365 | .340 | 3/8 | 36 | $17.89 | ||
| PT12-375-48 | 1/2 | .365 | .340 | 3/8 | 48 | $20.05 | ||
| PT12-437-12 | 1/2 | .427 | .397 | 3/8 | 12 | $15.21 | ||
| PT12-437-18 | 1/2 | .427 | .397 | 3/8 | 18 | $16.16 | ||
| PT12-437-24 | 1/2 | .427 | .397 | 3/8 | 24 | $17.11 | ||
| PT12-437-36 | 1/2 | .427 | .397 | 3/8 | 36 | $22.11 | ||
| PT12-437-48 | 1/2 | .427 | .397 | 3/8 | 48 | $25.99 | ||
| PT12-500-12 | 1/2 | .500 | .444 | 1/2 | 12 | $13.79 | ||
| PT12-500-18 | 1/2 | .500 | .444 | 1/2 | 18 | $15.69 | ||
| PT12-500-24 | 1/2 | .500 | .444 | 1/2 | 24 | $17.75 | ||
| PT12-500-36 | 1/2 | .500 | .444 | 1/2 | 36 | $22.11 | ||
| PT12-500-48 | 1/2 | .500 | .444 | 1/2 | 48 | $25.99 | ||
| PT14-187-12 | 1/4 | .187 | .167 | 1/4 | 12 | $10.98 | ||
| PT14-187-18 | 1/4 | .187 | .167 | 1/4 | 18 | $12.31 | ||
| PT14-187-24 | 1/4 | .187 | .167 | 1/4 | 24 | $13.64 | ||
| PT14-187-36 | 1/4 | .187 | .167 | 1/4 | 36 | $15.81 | ||
| PT14-187-48 | 1/4 | .187 | .167 | 1/4 | 48 | $17.64 | ||
| PT14-250-12 | 1/4 | .250 | .230 | 1/4 | 12 | $11.16 | ||
| PT14-250-18 | 1/4 | .250 | .230 | 1/4 | 18 | $12.49 | ||
| PT14-250-24 | 1/4 | .250 | .230 | 1/4 | 24 | $13.98 | ||
| PT14-250-36 | 1/4 | .250 | .230 | 1/4 | 36 | $15.97 | ||
| PT14-250-48 | 1/4 | .250 | .230 | 1/4 | 48 | $17.97 | ||
| PT14-312-12 | 1/4 | .312 | .288 | 5/16 | 12 | $11.39 | ||
| PT14-312-18 | 1/4 | .312 | .288 | 5/16 | 18 | $12.72 | ||
| PT14-312-24 | 1/4 | .312 | .288 | 5/16 | 24 | $14.23 | ||
| PT14-312-36 | 1/4 | .312 | .288 | 5/16 | 36 | $16.31 | ||
| PT14-312-48 | 1/4 | .312 | .288 | 5/16 | 48 | $18.22 | ||
| PT16-072-12 | 1/16 | .072 | .060 | 5/32 | 12 | $9.73 | ||
| PT16-072-18 | 1/16 | .072 | .060 | 5/32 | 18 | $10.65 | ||
| PT16-072-24 | 1/16 | .072 | .060 | 5/32 | 24 | $11.49 | ||
| PT16-072-36 | 1/16 | .072 | .060 | 5/32 | 36 | $12.98 | ||
| PT16-072-48 | 1/16 | .072 | .060 | 5/32 | 48 | $14.48 | ||
| PT16-093-12 | 1/16 | .090 | .076 | 5/32 | 12 | $9.73 | ||
| PT16-093-18 | 1/16 | .090 | .076 | 5/32 | 18 | $10.82 | ||
| PT16-093-24 | 1/16 | .090 | .076 | 5/32 | 24 | $11.98 | ||
| PT16-093-36 | 1/16 | .090 | .076 | 5/32 | 36 | $13.72 | ||
| PT16-093-48 | 1/16 | .090 | .076 | 5/32 | 48 | $15.48 | ||
| PT16-109-12 | 1/16 | .109 | .095 | 5/32 | 12 | $9.73 | ||
| PT16-109-18 | 1/16 | .109 | .095 | 5/32 | 18 | $10.82 | ||
| PT16-109-24 | 1/16 | .109 | .095 | 5/32 | 24 | $11.98 | ||
| PT16-109-36 | 1/16 | .109 | .095 | 5/32 | 36 | $13.72 | ||
| PT16-109-48 | 1/16 | .109 | .095 | 5/32 | 48 | $15.48 | ||
| PT16-125-12 | 1/16 | .125 | .109 | 5/32 | 12 | $9.73 | ||
| PT16-125-18 | 1/16 | .125 | .109 | 5/32 | 18 | $10.82 | ||
| PT16-125-24 | 1/16 | .125 | .109 | 5/32 | 24 | $11.98 | ||
| PT16-125-36 | 1/16 | .125 | .109 | 5/32 | 36 | $13.72 | ||
| PT16-125-48 | 1/16 | .125 | .109 | 5/32 | 48 | $15.48 | ||
| PT16-187-12 | 1/16 | .187 | .167 | 5/32 | 12 | $9.98 | ||
| PT16-187-18 | 1/16 | .187 | .167 | 5/32 | 18 | $11.16 | ||
| PT16-187-24 | 1/16 | .187 | .167 | 5/32 | 24 | $12.31 | ||
| PT16-187-36 | 1/16 | .187 | .167 | 5/32 | 36 | $14.15 | ||
| PT16-187-48 | 1/16 | .187 | .167 | 5/32 | 48 | $16.15 | ||
| PT18-125-12 | 1/8 | .125 | .109 | 3/16 | 12 | $10.40 | ||
| PT18-125-18 | 1/8 | .125 | .109 | 3/16 | 18 | $11.39 | ||
| PT18-125-24 | 1/8 | .125 | .109 | 3/16 | 24 | $12.72 | ||
| PT18-125-36 | 1/8 | .125 | .109 | 3/16 | 36 | $14.64 | ||
| PT18-125-48 | 1/8 | .125 | .109 | 3/16 | 48 | $16.35 | ||
| PT18-187-12 | 1/8 | .187 | .167 | 3/16 | 12 | $10.65 | ||
| PT18-187-18 | 1/8 | .187 | .167 | 3/16 | 18 | $11.65 | ||
| PT18-187-24 | 1/8 | .187 | .167 | 3/16 | 24 | $12.98 | ||
| PT18-187-36 | 1/8 | .187 | .167 | 3/16 | 36 | $14.90 | ||
| PT18-187-48 | 1/8 | .187 | .167 | 3/16 | 48 | $16.72 | ||
| PT18-250-12 | 1/8 | .250 | .230 | 1/4 | 12 | $10.82 | ||
| PT18-250-18 | 1/8 | .250 | .230 | 1/4 | 18 | $11.82 | ||
| PT18-250-24 | 1/8 | .250 | .230 | 1/4 | 24 | $13.15 | ||
| PT18-250-36 | 1/8 | .250 | .230 | 1/4 | 36 | $15.15 | ||
| PT18-250-48 | 1/8 | .250 | .230 | 1/4 | 48 | $16.97 | ||
| PT34-437-12 | 3/4 | .427 | .397 | 9/16 | 12 | $15.53 | ||
| PT34-437-18 | 3/4 | .427 | .397 | 9/16 | 18 | $17.51 | ||
| PT34-437-24 | 3/4 | .427 | .397 | 9/16 | 24 | $20.12 | ||
| PT34-437-36 | 3/4 | .427 | .397 | 9/16 | 36 | $24.88 | ||
| PT34-437-48 | 3/4 | .427 | .397 | 9/16 | 48 | $30.11 | ||
| PT34-500-12 | 3/4 | .500 | .444 | 9/16 | 12 | $15.53 | ||
| PT34-500-18 | 3/4 | .500 | .444 | 9/16 | 18 | $17.51 | ||
| PT34-500-24 | 3/4 | .500 | .444 | 9/16 | 24 | $20.12 | ||
| PT34-500-36 | 3/4 | .500 | .444 | 9/16 | 36 | $24.88 | ||
| PT34-500-48 | 3/4 | .500 | .444 | 9/16 | 48 | $30.11 | ||
| PT34-625-12 | 3/4 | .625 | .596 | 9/16 | 12 | $16.72 | ||
| PT34-625-18 | 3/4 | .625 | .596 | 9/16 | 18 | $19.22 | ||
| PT34-625-24 | 3/4 | .625 | .596 | 9/16 | 24 | $22.47 | ||
| PT34-625-36 | 3/4 | .625 | .596 | 9/16 | 36 | $28.03 | ||
| PT34-625-48 | 3/4 | .625 | .596 | 9/16 | 48 | $33.12 | ||
| PT38-312-12 | 3/8 | .312 | .288 | 5/16 | 12 | $11.98 | ||
| PT38-312-18 | 3/8 | .312 | .288 | 5/16 | 18 | $13.39 | ||
| PT38-312-24 | 3/8 | .312 | .288 | 5/16 | 24 | $14.82 | ||
| PT38-312-36 | 3/8 | .312 | .288 | 5/16 | 36 | $17.30 | ||
| PT38-312-48 | 3/8 | .312 | .288 | 5/16 | 48 | $19.14 | ||
| PT38-375-12 | 3/8 | .365 | .340 | 5/16 | 12 | $12.23 | ||
| PT38-375-18 | 3/8 | .365 | .340 | 5/16 | 18 | $13.64 | ||
| PT38-375-24 | 3/8 | .365 | .340 | 5/16 | 24 | $15.05 | ||
| PT38-375-36 | 3/8 | .365 | .340 | 5/16 | 36 | $17.48 | ||
| PT38-375-48 | 3/8 | .365 | .340 | 5/16 | 48 | $19.63 | ||
| PT38-437-12 | 3/8 | .427 | .397 | 3/8 | 12 | $12.90 | ||
| PT38-437-18 | 3/8 | .427 | .397 | 3/8 | 18 | $15.05 | ||
| PT38-437-24 | 3/8 | .427 | .397 | 3/8 | 24 | $17.35 | ||
| PT38-437-36 | 3/8 | .427 | .397 | 3/8 | 36 | $21.79 | ||
| PT38-437-48 | 3/8 | .427 | .397 | 3/8 | 48 | $25.67 |
