- Unit of Measure - Inch
- Recessed to prevent damage or accidental disconnect
- Eliminate crimped hoses and setup errors
- Viton O-ring seals

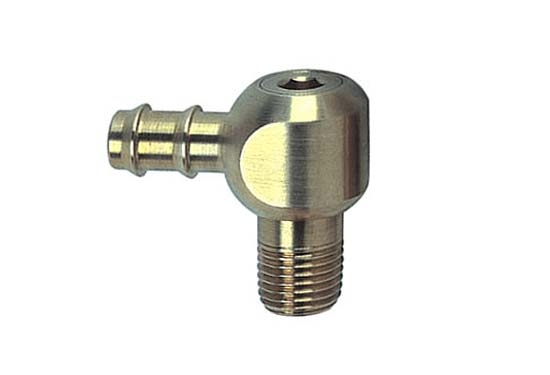

Swivel Type Water Jumpers
Swivel Type Water Jumpers have an all brass construction. The swivel body allows for installation where space is limited. These Water Jumpers are recessed to prevent accidental disconnect or damage and the adjustable thread allows for perfect positioning.
| Item Number | Hose I.D. | Pipe Size NPT | C Hose Barb Length | H Hex Size | Installation Slot Depth | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|
| WJ14-L | 0.375 | 0.25 | 1-3/16 | 1/4 | 1-3/16 | $13.55 | ||
| WJ14-M | 0.375 | 0.25 | 1-3/16 | 1/4 | 1-3/16 | $12.79 | ||
| WJ14-S | 0.375 | 0.25 | 1-3/16 | 1/4 | 1-3/16 | $12.05 | ||
| WJ18-L | 0.3125 | 0.125 | 1 | 3/16 | 1 | $11.87 | ||
| WJ18-M | 0.3125 | 0.125 | 1 | 3/16 | 1 | $11.06 | ||
| WJ18-S | 0.3125 | 0.125 | 1 | 3/16 | 1 | $9.96 | ||
| WJ38-L | 0.5 | 0.375 | 1-3/8 | 5/16 | 1-3/8 | $15.16 | ||
| WJ38-M | 0.5 | 0.375 | 1-3/8 | 5/16 | 1-3/8 | $14.29 | ||
| WJ38-S | 0.5 | 0.375 | 1-3/8 | 5/16 | 1-3/8 | $13.50 | ||
| WJ50-50HT | 0.5 | 0.5 | 1-1/2 | 3/8 | 1-9/16 | $18.26 | ||
| WJ50-L | 0.75 | 0.5 | 1-1/2 | 3/8 | 1-9/16 | $18.00 | ||
| WJ50-M | 0.75 | 0.5 | 1-1/2 | 3/8 | 1-9/16 | $16.73 | ||
| WJ50-S | 0.75 | 0.5 | 1-1/2 | 3/8 | 1-9/16 | $15.45 |
