- For processing temperature > 500°F
- 3 tips options for gating into a runner or directly in the part
- Standard and wear resistant needle options
- 7 nozzle lengths
- 240v heaters with integral J-type thermocouples
- Spare J-type body thermocouple included
- 1/2" or 3/4" radius
- Standard 2.000" head diameter
- Nozzle body flow diameter - .280"

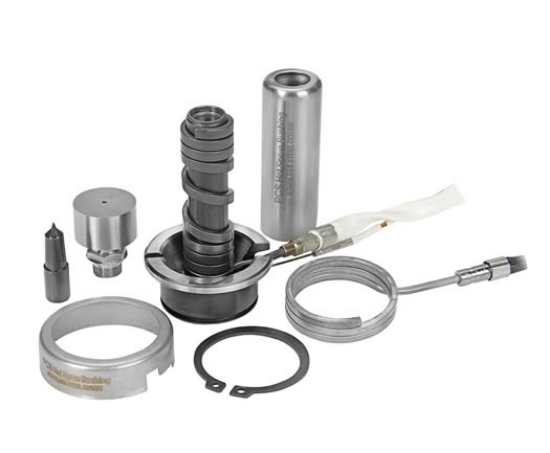

High Performance Hot Sprue Bushing Assemblies
PCS High Performance Hot Sprue Bushings are designed to replace a conventional cold sprue bushing to assist in reducing scrap, improve cycle time and part quality.
| Item Number | L Dimension | OAL | Radius | Tip Style | Tip Diameter | Orifice | Needle | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| HSB-13-1-EF-075-125-2 | 1.375" | 2.25" | 1/2" | Sprue Nut | 0.75" | 0.125" | N/A | $865.81 | ||
| HSB-13-1-EF-075-2 | 1.375" | 2.25" | 1/2" | Sprue Nut | 0.75" | 0.078" | N/A | $849.22 | ||
| HSB-13-1-EF-075XS-078-2 | 1.375" | 2.875" | 1/2" | Sprue Nut | 0.75" | 0.078" | N/A | $865.81 | ||
| HSB-13-1-EF-075XS-2 | 1.375" | 2.875" | 1/2" | Sprue Nut | 0.75" | 0.125" | N/A | $849.22 | ||
| HSB-13-1-EF-100-125-2 | 1.375" | 2.25" | 1/2" | Sprue Nut | 1" | 0.125" | N/A | $882.70 | ||
| HSB-13-1-EF-100-2 | 1.375" | 2.25" | 1/2" | Sprue Nut | 1" | 0.078" | N/A | $849.22 | ||
| HSB-13-1-EF-100XS-078-2 | 1.375" | 2.875" | 1/2" | Sprue Nut | 1" | 0.078" | N/A | $882.70 | ||
| HSB-13-1-EF-100XS-2 | 1.375" | 2.875" | 1/2" | Sprue Nut | 1" | 0.125" | N/A | $858.22 | ||
| HSB-13-1-ON-2 | 1.375" | 2.25" | 1/2" | Open Nut | N/A | N/A | Standard | $1,074.99 | ||
| HSB-13-1-ON-F-2 | 1.375" | 2.25" | 1/2" | Open Nut | N/A | N/A | Flow Through | $1,126.51 | ||
| HSB-13-1-ON-W-2 | 1.375" | 2.25" | 1/2" | Open Nut | N/A | N/A | Wear Resistant | $1,131.12 | ||
| HSB-13-1-SE-075-2 | 1.375" | 2.25" | 1/2" | Sprue Nut | 0.75" | 0.078" | Standard | $920.43 | ||
| HSB-13-1-SE-075F-2 | 1.375" | 2.25" | 1/2" | Sprue Nut | 0.75" | 0.078" | Flow Through | $1,041.56 | ||
| HSB-13-1-SE-075W-2 | 1.375" | 2.25" | 1/2" | Sprue Nut | 0.75" | 0.078" | Wear Resistant | $1,056.56 | ||
| HSB-13-1-SE-100-2 | 1.375" | 2.25" | 1/2" | Sprue Nut | 1" | 0.078" | Standard | $911.85 | ||
| HSB-13-1-SE-100F-2 | 1.375" | 2.25" | 1/2" | Sprue Nut | 1" | 0.078" | Flow Through | $1,032.98 | ||
| HSB-13-1-SE-100W-2 | 1.375" | 2.25" | 1/2" | Sprue Nut | 1" | 0.078" | Wear Resistant | $1,047.98 | ||
| HSB-13-1-SN-075-2 | 1.375" | 2.25" | 1/2" | Bush Nut | 0.75" | 0.059" | Standard | $1,063.59 | ||
| HSB-13-1-SN-075F-2 | 1.375" | 2.25" | 1/2" | Bush Nut | 0.75" | 0.059" | Flow Through | $1,115.11 | ||
| HSB-13-1-SN-075W-2 | 1.375" | 2.25" | 1/2" | Bush Nut | 0.75" | 0.059" | Wear Resistant | $1,119.72 | ||
| HSB-13-1-SN-075XS-2 | 1.375" | 2.875" | 1/2" | Bush Nut | 0.75" | 0.059" | Standard | $1,069.74 | ||
| HSB-13-1-SN-075XSF-2 | 1.375" | 2.875" | 1/2" | Bush Nut | 0.75" | 0.059" | Flow Through | $1,121.27 | ||
| HSB-13-1-SN-075XSW-2 | 1.375" | 2.875" | 1/2" | Bush Nut | 0.75" | 0.059" | Wear Resistant | $1,125.87 | ||
| HSB-13-1-SN-100-2 | 1.375" | 2.25" | 1/2" | Bush Nut | 1" | 0.059" | Standard | $1,074.99 | ||
| HSB-13-1-SN-100F-2 | 1.375" | 2.25" | 1/2" | Bush Nut | 1" | 0.059" | Flow Through | $1,126.51 | ||
| HSB-13-1-SN-100W-2 | 1.375" | 2.25" | 1/2" | Bush Nut | 1" | 0.059" | Wear Resistant | $1,131.12 | ||
| HSB-13-1-SN-100XS-2 | 1.375" | 2.875" | 1/2" | Bush Nut | 1" | 0.059" | Standard | $1,075.50 | ||
| HSB-13-1-SN-100XSF-2 | 1.375" | 2.875" | 1/2" | Bush Nut | 1" | 0.059" | Flow Through | $1,127.02 | ||
| HSB-13-1-SN-100XSW-2 | 1.375" | 2.875" | 1/2" | Bush Nut | 1" | 0.059" | Wear Resistant | $1,131.63 | ||
| HSB-13-2-EF-075-125-2 | 1.375" | 2.25" | 3/4" | Sprue Nut | 0.75" | 0.125" | N/A | $865.81 | ||
| HSB-13-2-EF-075-2 | 1.375" | 2.25" | 3/4" | Sprue Nut | 0.75" | 0.078" | N/A | $849.22 | ||
| HSB-13-2-EF-075XS-078-2 | 1.375" | 2.875" | 3/4" | Sprue Nut | 0.75" | 0.078" | N/A | $865.81 | ||
| HSB-13-2-EF-075XS-2 | 1.375" | 2.875" | 3/4" | Sprue Nut | 0.75" | 0.125" | N/A | $849.22 | ||
| HSB-13-2-EF-100-125-2 | 1.375" | 2.25" | 3/4" | Sprue Nut | 1" | 0.125" | N/A | $882.70 | ||
| HSB-13-2-EF-100-2 | 1.375" | 2.25" | 3/4" | Sprue Nut | 1" | 0.078" | N/A | $849.22 | ||
| HSB-13-2-EF-100XS-078-2 | 1.375" | 2.875" | 3/4" | Sprue Nut | 1" | 0.078" | N/A | $882.70 | ||
| HSB-13-2-EF-100XS-2 | 1.375" | 2.875" | 3/4" | Sprue Nut | 1" | 0.125" | N/A | $858.22 | ||
| HSB-13-2-ON-2 | 1.375" | 2.25" | 3/4" | Open Nut | N/A | N/A | Standard | $1,074.99 | ||
| HSB-13-2-ON-F-2 | 1.375" | 2.25" | 3/4" | Open Nut | N/A | N/A | Flow Through | $1,126.51 | ||
| HSB-13-2-ON-W-2 | 1.375" | 2.25" | 3/4" | Open Nut | N/A | N/A | Wear Resistant | $1,131.12 | ||
| HSB-13-2-SE-075-2 | 1.375" | 2.25" | 3/4" | Sprue Nut | 0.75" | 0.078" | Standard | $920.43 | ||
| HSB-13-2-SE-075F-2 | 1.375" | 2.25" | 3/4" | Sprue Nut | 0.75" | 0.078" | Flow Through | $1,041.56 | ||
| HSB-13-2-SE-075W-2 | 1.375" | 2.25" | 3/4" | Sprue Nut | 0.75" | 0.078" | Wear Resistant | $1,056.56 | ||
| HSB-13-2-SE-100-2 | 1.375" | 2.25" | 3/4" | Sprue Nut | 1" | 0.078" | Standard | $911.85 | ||
| HSB-13-2-SE-100F-2 | 1.375" | 2.25" | 3/4" | Sprue Nut | 1" | 0.078" | Flow Through | $1,032.98 | ||
| HSB-13-2-SE-100W-2 | 1.375" | 2.25" | 3/4" | Sprue Nut | 1" | 0.078" | Wear Resistant | $1,047.98 | ||
| HSB-13-2-SN-075-2 | 1.375" | 2.25" | 3/4" | Bush Nut | 0.75" | 0.059" | Standard | $1,063.59 | ||
| HSB-13-2-SN-075F-2 | 1.375" | 2.25" | 3/4" | Bush Nut | 0.75" | 0.059" | Flow Through | $1,115.11 | ||
| HSB-13-2-SN-075W-2 | 1.375" | 2.25" | 3/4" | Bush Nut | 0.75" | 0.059" | Wear Resistant | $1,119.72 | ||
| HSB-13-2-SN-075XS-2 | 1.375" | 2.875" | 3/4" | Bush Nut | 0.75" | 0.059" | Standard | $1,069.74 | ||
| HSB-13-2-SN-075XSF-2 | 1.375" | 2.875 | 3/4" | Bush Nut | 0.75" | 0.059" | Flow Through | $1,121.27 | ||
| HSB-13-2-SN-075XSW-2 | 1.375" | 2.875" | 3/4" | Bush Nut | 0.75" | 0.059" | Wear Resistant | $1,125.87 | ||
| HSB-13-2-SN-100-2 | 1.375" | 2.25" | 3/4" | Bush Nut | 1" | 0.059" | Standard | $1,074.99 | ||
| HSB-13-2-SN-100F-2 | 1.375" | 2.25" | 3/4" | Bush Nut | 1" | 0.059" | Flow Through | $1,126.51 | ||
| HSB-13-2-SN-100W-2 | 1.375" | 2.25" | 3/4" | Bush Nut | 1" | 0.059" | Wear Resistant | $1,131.12 | ||
| HSB-13-2-SN-100XS-2 | 1.375" | 2.875 | 3/4" | Bush Nut | 1" | 0.059" | Standard | $1,075.50 | ||
| HSB-13-2-SN-100XSF-2 | 1.375" | 2.875" | 3/4" | Bush Nut | 1" | 0.059" | Flow Through | $1,127.02 | ||
| HSB-13-2-SN-100XSW-2 | 1.375" | 2.875" | 3/4" | Bush Nut | 1" | 0.059" | Wear Resistant | $1,131.63 | ||
| HSB-18-1-EF-075-125-2 | 1.875" | 2.75" | 1/2" | Sprue Nut | 0.75" | 0.125" | N/A | $871.46 | ||
| HSB-18-1-EF-075-2 | 1.875" | 2.75" | 1/2" | Sprue Nut | 0.75" | 0.078" | N/A | $854.86 | ||
| HSB-18-1-EF-075XS-078-2 | 1.875" | 3.375" | 1/2" | Sprue Nut | 0.75" | 0.078" | N/A | $871.46 | ||
| HSB-18-1-EF-075XS-2 | 1.875" | 3.375" | 1/2" | Sprue Nut | 0.75" | 0.125" | N/A | $854.86 | ||
| HSB-18-1-EF-100-125-2 | 1.875" | 2.75" | 1/2" | Sprue Nut | 1" | 0.125" | N/A | $888.35 | ||
| HSB-18-1-EF-100-2 | 1.875" | 2.75" | 1/2" | Sprue Nut | 1" | 0.078" | N/A | $854.86 | ||
| HSB-18-1-EF-100XS-078-2 | 1.875" | 3.375" | 1/2" | Sprue Nut | 1" | 0.078" | N/A | $888.35 | ||
| HSB-18-1-EF-100XS-2 | 1.875" | 3.375" | 1/2" | Sprue Nut | 1" | 0.125" | N/A | $863.86 | ||
| HSB-18-1-ON-2 | 1.875" | 2.75" | 1/2" | Open Nut | N/A | N/A | Standard | $1,080.63 | ||
| HSB-18-1-ON-F-2 | 1.875" | 2.75" | 1/2" | Open Nut | N/A | N/A | Flow Through | $1,132.16 | ||
| HSB-18-1-ON-W-2 | 1.875" | 2.75" | 1/2" | Open Nut | N/A | N/A | Wear Resistant | $1,136.77 | ||
| HSB-18-1-SE-075-2 | 1.875" | 2.75" | 1/2" | Sprue Nut | 0.75" | 0.078" | Standard | $926.07 | ||
| HSB-18-1-SE-075F-2 | 1.875" | 2.75" | 1/2" | Sprue Nut | 0.75" | 0.078" | Flow Through | $1,047.20 | ||
| HSB-18-1-SE-075W-2 | 1.875" | 2.75" | 1/2" | Sprue Nut | 0.75" | 0.078" | Wear Resistant | $1,062.20 | ||
| HSB-18-1-SE-100-2 | 1.875" | 2.75" | 1/2" | Sprue Nut | 1" | 0.078" | Standard | $917.49 | ||
| HSB-18-1-SE-100F-2 | 1.875" | 2.75" | 1/2" | Sprue Nut | 1" | 0.078" | Flow Through | $1,038.62 | ||
| HSB-18-1-SE-100W-2 | 1.875" | 2.75" | 1/2" | Sprue Nut | 1" | 0.078" | Wear Resistant | $1,053.62 | ||
| HSB-18-1-SN-075-2 | 1.875" | 2.75" | 1/2" | Bush Nut | 0.75" | 0.059" | Standard | $1,069.23 | ||
| HSB-18-1-SN-075F-2 | 1.875" | 2.75" | 1/2" | Bush Nut | 0.75" | 0.059" | Flow Through | $1,120.75 | ||
| HSB-18-1-SN-075W-2 | 1.875" | 2.75" | 1/2" | Bush Nut | 0.75" | 0.059" | Wear Resistant | $1,125.36 | ||
| HSB-18-1-SN-075XS-2 | 1.875" | 3.375" | 1/2" | Bush Nut | 0.75" | 0.059" | Standard | $1,075.39 | ||
| HSB-18-1-SN-075XSF-2 | 1.875" | 3.375" | 1/2" | Bush Nut | 0.75" | 0.059" | Flow Through | $1,126.91 | ||
| HSB-18-1-SN-075XSW-2 | 1.875" | 3.375" | 1/2" | Bush Nut | 0.75" | 0.059" | Wear Resistant | $1,131.52 | ||
| HSB-18-1-SN-100-2 | 1.875" | 2.75" | 1/2" | Bush Nut | 1" | 0.059" | Standard | $1,080.63 | ||
| HSB-18-1-SN-100F-2 | 1.875" | 2.75" | 1/2" | Bush Nut | 1" | 0.059" | Flow Through | $1,132.16 | ||
| HSB-18-1-SN-100W-2 | 1.875" | 2.75" | 1/2" | Bush Nut | 1" | 0.059" | Wear Resistant | $1,136.77 | ||
| HSB-18-1-SN-100XS-2 | 1.875" | 3.375" | 1/2" | Bush Nut | 1" | 0.059" | Standard | $1,081.14 | ||
| HSB-18-1-SN-100XSF-2 | 1.875" | 3.375" | 1/2" | Bush Nut | 1" | 0.059" | Flow Through | $1,132.66 | ||
| HSB-18-1-SN-100XSW-2 | 1.875" | 3.375" | 1/2" | Bush Nut | 1" | 0.059" | Wear Resistant | $1,137.27 | ||
| HSB-18-2-EF-075-125-2 | 1.875" | 2.75" | 3/4" | Sprue Nut | 0.75" | 0.125" | N/A | $871.46 | ||
| HSB-18-2-EF-075-2 | 1.875" | 2.75" | 3/4" | Sprue Nut | 0.75" | 0.078" | N/A | $854.86 | ||
| HSB-18-2-EF-075XS-078-2 | 1.875" | 3.375" | 3/4" | Sprue Nut | 0.75" | 0.078" | N/A | $871.46 | ||
| HSB-18-2-EF-075XS-2 | 1.875" | 3.375" | 3/4" | Sprue Nut | 0.75" | 0.125" | N/A | $854.86 | ||
| HSB-18-2-EF-100-125-2 | 1.875" | 2.75" | 3/4" | Sprue Nut | 1" | 0.125" | N/A | $888.35 | ||
| HSB-18-2-EF-100-2 | 1.875" | 2.75" | 3/4" | Sprue Nut | 1" | 0.078" | N/A | $854.86 | ||
| HSB-18-2-EF-100XS-078-2 | 1.875" | 3.375" | 3/4" | Sprue Nut | 1" | 0.078" | N/A | $888.35 | ||
| HSB-18-2-EF-100XS-2 | 1.875" | 3.375" | 3/4" | Sprue Nut | 1" | 0.125" | N/A | $863.86 | ||
| HSB-18-2-ON-2 | 1.875" | 2.75" | 3/4" | Open Nut | N/A | N/A | Standard | $1,080.63 | ||
| HSB-18-2-ON-F-2 | 1.875" | 2.75" | 3/4" | Open Nut | N/A | N/A | Flow Through | $1,132.16 | ||
| HSB-18-2-ON-W-2 | 1.875" | 2.75" | 3/4" | Open Nut | N/A | N/A | Wear Resistant | $1,136.77 | ||
| HSB-18-2-SE-075-2 | 1.875" | 2.75" | 3/4" | Sprue Nut | 0.75" | 0.078" | Standard | $926.07 | ||
| HSB-18-2-SE-075F-2 | 1.875" | 2.75" | 3/4" | Sprue Nut | 0.75" | 0.078" | Flow Through | $1,047.20 | ||
| HSB-18-2-SE-075W-2 | 1.875" | 2.75" | 3/4" | Sprue Nut | 0.75" | 0.078" | Wear Resistant | $1,062.20 | ||
| HSB-18-2-SE-100-2 | 1.875" | 2.75" | 3/4" | Sprue Nut | 1" | 0.078" | Standard | $917.49 | ||
| HSB-18-2-SE-100F-2 | 1.875" | 2.75" | 3/4" | Sprue Nut | 1" | 0.078" | Flow Through | $1,038.62 | ||
| HSB-18-2-SE-100W-2 | 1.875" | 2.75" | 3/4" | Sprue Nut | 1" | 0.078" | Wear Resistant | $1,053.62 | ||
| HSB-18-2-SN-075-2 | 1.875" | 2.75" | 3/4" | Bush Nut | 0.75" | 0.059" | Standard | $1,069.23 | ||
| HSB-18-2-SN-075F-2 | 1.875" | 2.75" | 3/4" | Bush Nut | 0.75" | 0.059" | Flow Through | $1,120.75 | ||
| HSB-18-2-SN-075W-2 | 1.875" | 2.75" | 3/4" | Bush Nut | 0.75" | 0.059" | Wear Resistant | $1,125.36 | ||
| HSB-18-2-SN-075XS-2 | 1.875" | 3.375" | 3/4" | Bush Nut | 0.75" | 0.059" | Standard | $1,075.39 | ||
| HSB-18-2-SN-075XSF-2 | 1.875" | 3.375" | 3/4" | Bush Nut | 0.75" | 0.059" | Flow Through | $1,126.91 | ||
| HSB-18-2-SN-075XSW-2 | 1.875" | 3.375" | 3/4" | Bush Nut | 0.75" | 0.059" | Wear Resistant | $1,131.52 | ||
| HSB-18-2-SN-100-2 | 1.875" | 2.75" | 3/4" | Bush Nut | 1" | 0.059" | Standard | $1,080.63 | ||
| HSB-18-2-SN-100F-2 | 1.875" | 2.75" | 3/4" | Bush Nut | 1" | 0.059" | Flow Through | $1,132.16 | ||
| HSB-18-2-SN-100W-2 | 1.875" | 2.75" | 3/4" | Bush Nut | 1" | 0.059" | Wear Resistant | $1,136.77 | ||
| HSB-18-2-SN-100XS-2 | 1.875" | 3.375" | 3/4" | Bush Nut | 1" | 0.059" | Standard | $1,081.14 | ||
| HSB-18-2-SN-100XSF-2 | 1.875" | 3.375" | 3/4" | Bush Nut | 1" | 0.059" | Flow Through | $1,132.66 | ||
| HSB-18-2-SN-100XSW-2 | 1.875" | 3.375" | 3/4" | Bush Nut | 1" | 0.059" | Wear Resistant | $1,137.27 | ||
| HSB-23-1-EF-075-125-2 | 2.375" | 3.25" | 1/2" | Sprue Nut | 0.75" | 0.125" | N/A | $877.83 | ||
| HSB-23-1-EF-075-2 | 2.375" | 3.25" | 1/2" | Sprue Nut | 0.75" | 0.078" | N/A | $861.23 | ||
| HSB-23-1-EF-075XS-2 | 2.375" | 3.875" | 1/2" | Sprue Nut | 0.75" | 0.125" | N/A | $861.23 | ||
| HSB-23-1-EF-100-125-2 | 2.375" | 3.25" | 1/2" | Sprue Nut | 1" | 0.125" | N/A | $894.72 | ||
| HSB-23-1-EF-100-2 | 2.375" | 3.25" | 1/2" | Sprue Nut | 1" | 0.078" | N/A | $861.23 | ||
| HSB-23-1-EF-100XS-078-2 | 2.375" | 3.875" | 1/2" | Sprue Nut | 1" | 0.078" | N/A | $894.72 | ||
| HSB-23-1-EF-100XS-2 | 2.375" | 3.875" | 1/2" | Sprue Nut | 1" | 0.125" | N/A | $870.23 | ||
| HSB-23-1-ON-2 | 2.375" | 3.25" | 1/2" | Open Nut | N/A | N/A | Standard | $1,087.00 | ||
| HSB-23-1-ON-F-2 | 2.375" | 3.25" | 1/2" | Open Nut | N/A | N/A | Flow Through | $1,138.53 | ||
| HSB-23-1-ON-W-2 | 2.375" | 3.25" | 1/2" | Open Nut | N/A | N/A | Wear Resistant | $1,143.13 | ||
| HSB-23-1-SE-075-2 | 2.375" | 3.25" | 1/2" | Sprue Nut | 0.75" | 0.078" | Standard | $932.44 | ||
| HSB-23-1-SE-075F-2 | 2.375" | 3.25" | 1/2" | Sprue Nut | 0.75" | 0.078" | Flow Through | $1,053.57 | ||
| HSB-23-1-SE-075W-2 | 2.375" | 3.25" | 1/2" | Sprue Nut | 0.75" | 0.078" | Wear Resistant | $1,068.57 | ||
| HSB-23-1-SE-100-2 | 2.375" | 3.25" | 1/2" | Sprue Nut | 1" | 0.078" | Standard | $923.86 | ||
| HSB-23-1-SE-100F-2 | 2.375" | 3.25" | 1/2" | Sprue Nut | 1" | 0.078" | Flow Through | $1,044.99 | ||
| HSB-23-1-SE-100W-2 | 2.375" | 3.25" | 1/2" | Sprue Nut | 1" | 0.078" | Wear Resistant | $1,059.99 | ||
| HSB-23-1-SN-075-2 | 2.375" | 3.25" | 1/2" | Bush Nut | 0.75" | 0.059" | Standard | $1,075.60 | ||
| HSB-23-1-SN-075F-2 | 2.375" | 3.25" | 1/2" | Bush Nut | 0.75" | 0.059" | Flow Through | $1,127.12 | ||
| HSB-23-1-SN-075W-2 | 2.375" | 3.25" | 1/2" | Bush Nut | 0.75" | 0.059" | Wear Resistant | $1,131.73 | ||
| HSB-23-1-SN-075XS-2 | 2.375" | 3.875" | 1/2" | Bush Nut | 0.75" | 0.059" | Standard | $1,081.76 | ||
| HSB-23-1-SN-075XSF-2 | 2.375" | 3.875" | 1/2" | Bush Nut | 0.75" | 0.059" | Flow Through | $1,133.28 | ||
| HSB-23-1-SN-075XSW-2 | 2.375" | 3.875" | 1/2" | Bush Nut | 0.75" | 0.059" | Wear Resistant | $1,137.89 | ||
| HSB-23-1-SN-100-2 | 2.375" | 3.25" | 1/2" | Bush Nut | 1" | 0.059" | Standard | $1,087.00 | ||
| HSB-23-1-SN-100F-2 | 2.375" | 3.25" | 1/2" | Bush Nut | 1" | 0.059" | Flow Through | $1,138.53 | ||
| HSB-23-1-SN-100W-2 | 2.375" | 3.25" | 1/2" | Bush Nut | 1" | 0.059" | Wear Resistant | $1,143.13 | ||
| HSB-23-1-SN-100XS-2 | 2.375" | 3.875" | 1/2" | Bush Nut | 1" | 0.059" | Standard | $1,087.51 | ||
| HSB-23-1-SN-100XSF-2 | 2.375" | 3.875" | 1/2" | Bush Nut | 1" | 0.059" | Flow Through | $1,139.03 | ||
| HSB-23-1-SN-100XSW-2 | 2.375" | 3.875" | 1/2" | Bush Nut | 1" | 0.059" | Wear Resistant | $1,143.64 | ||
| HSB-23-2-EF-075-125-2 | 2.375" | 3.25" | 3/4" | Sprue Nut | 0.75" | 0.125" | N/A | $877.83 | ||
| HSB-23-2-EF-075-2 | 2.375" | 3.25" | 3/4" | Sprue Nut | 0.75" | 0.078" | N/A | $861.23 | ||
| HSB-23-2-EF-075XS-078-2 | 2.375" | 3.875" | 3/4" | Sprue Nut | 0.75" | 0.078" | N/A | $877.83 | ||
| HSB-23-2-EF-075XS-2 | 2.375" | 3.875" | 3/4" | Sprue Nut | 0.75" | 0.125" | N/A | $861.23 | ||
| HSB-23-2-EF-100-125-2 | 2.375" | 3.25" | 3/4" | Sprue Nut | 1" | 0.125" | N/A | $894.72 | ||
| HSB-23-2-EF-100-2 | 2.375" | 3.25" | 3/4" | Sprue Nut | 1" | 0.078" | N/A | $861.23 | ||
| HSB-23-2-EF-100XS-078-2 | 2.375" | 3.875" | 3/4" | Sprue Nut | 1" | 0.078" | N/A | $894.72 | ||
| HSB-23-2-EF-100XS-2 | 2.375" | 3.875" | 3/4" | Sprue Nut | 1" | 0.125" | N/A | $870.23 | ||
| HSB-23-2-ON-2 | 2.375" | 3.25" | 3/4" | Open Nut | N/A | N/A | Standard | $1,087.00 | ||
| HSB-23-2-ON-F-2 | 2.375" | 3.25" | 3/4" | Open Nut | N/A | N/A | Flow Through | $1,138.53 | ||
| HSB-23-2-ON-W-2 | 2.375" | 3.25" | 3/4" | Open Nut | N/A | N/A | Wear Resistant | $1,143.13 | ||
| HSB-23-2-SE-075-2 | 2.375" | 3.25" | 3/4" | Sprue Nut | 0.75" | 0.078" | Standard | $932.44 | ||
| HSB-23-2-SE-075F-2 | 2.375" | 3.25" | 3/4" | Sprue Nut | 0.75" | 0.078" | Flow Through | $1,053.57 | ||
| HSB-23-2-SE-075W-2 | 2.375" | 3.25" | 3/4" | Sprue Nut | 0.75" | 0.078" | Wear Resistant | $1,068.57 | ||
| HSB-23-2-SE-100-2 | 2.375" | 3.25" | 3/4" | Sprue Nut | 1" | 0.078" | Standard | $923.86 | ||
| HSB-23-2-SE-100F-2 | 2.375" | 3.25" | 3/4" | Sprue Nut | 1" | 0.078" | Flow Through | $1,044.99 | ||
| HSB-23-2-SE-100W-2 | 2.375" | 3.25" | 3/4" | Sprue Nut | 1" | 0.078" | Wear Resistant | $1,059.99 | ||
| HSB-23-2-SN-075-2 | 2.375" | 3.25" | 3/4" | Bush Nut | 0.75" | 0.059" | Standard | $1,075.60 | ||
| HSB-23-2-SN-075F-2 | 2.375" | 3.25" | 3/4" | Bush Nut | 0.75" | 0.059" | Flow Through | $1,127.12 | ||
| HSB-23-2-SN-075W-2 | 2.375" | 3.25" | 3/4" | Bush Nut | 0.75" | 0.059" | Wear Resistant | $1,131.73 | ||
| HSB-23-2-SN-075XS-2 | 2.375" | 3.875" | 3/4" | Bush Nut | 0.75" | 0.059" | Standard | $1,081.76 | ||
| HSB-23-2-SN-075XSF-2 | 2.375" | 3.875" | 3/4" | Bush Nut | 0.75" | 0.059" | Flow Through | $1,133.28 | ||
| HSB-23-2-SN-075XSW-2 | 2.375" | 3.875" | 3/4" | Bush Nut | 0.75" | 0.059" | Wear Resistant | $1,137.89 | ||
| HSB-23-2-SN-100-2 | 2.375" | 3.25" | 3/4" | Bush Nut | 1" | 0.059" | Standard | $1,087.00 | ||
| HSB-23-2-SN-100F-2 | 2.375" | 3.25" | 3/4" | Bush Nut | 1" | 0.059" | Flow Through | $1,138.53 | ||
| HSB-23-2-SN-100W-2 | 2.375" | 3.25" | 3/4" | Bush Nut | 1" | 0.059" | Wear Resistant | $1,143.13 | ||
| HSB-23-2-SN-100XS-2 | 2.375" | 3.875" | 3/4" | Bush Nut | 1" | 0.059" | Standard | $1,087.51 | ||
| HSB-23-2-SN-100XSF-2 | 2.375" | 3.875" | 3/4" | Bush Nut | 1" | 0.059" | Flow Through | $1,139.03 | ||
| HSB-23-2-SN-100XSW-2 | 2.375" | 3.875" | 3/4" | Bush Nut | 1" | 0.059" | Wear Resistant | $1,143.64 | ||
| HSB-28-1-EF-075-125-2 | 2.875" | 3.75" | 1/2" | Sprue Nut | 0.75" | 0.125" | N/A | $889.72 | ||
| HSB-28-1-EF-075-2 | 2.875" | 3.75" | 1/2" | Sprue Nut | 0.75" | 0.078" | N/A | $873.12 | ||
| HSB-28-1-EF-075XS-078-2 | 2.875" | 4.375" | 1/2" | Sprue Nut | 0.75" | 0.078" | N/A | $889.72 | ||
| HSB-28-1-EF-075XS-2 | 2.875" | 4.375" | 1/2" | Sprue Nut | 0.75" | 0.125" | N/A | $873.12 | ||
| HSB-28-1-EF-100-125-2 | 2.875" | 3.75" | 1/2" | Sprue Nut | 1" | 0.125" | N/A | $906.61 | ||
| HSB-28-1-EF-100-2 | 2.875" | 3.75" | 1/2" | Sprue Nut | 1" | 0.078" | N/A | $873.12 | ||
| HSB-28-1-EF-100XS-078-2 | 2.875" | 4.375" | 1/2" | Sprue Nut | 1" | 0.078" | N/A | $906.61 | ||
| HSB-28-1-EF-100XS-2 | 2.875" | 4.375" | 1/2" | Sprue Nut | 1" | 0.125" | N/A | $882.13 | ||
| HSB-28-1-ON-2 | 2.875" | 3.75" | 1/2" | Open Nut | N/A | N/A | Standard | $1,098.90 | ||
| HSB-28-1-ON-F-2 | 2.875" | 3.75" | 1/2" | Open Nut | N/A | N/A | Flow Through | $1,150.42 | ||
| HSB-28-1-ON-W-2 | 2.875" | 3.75" | 1/2" | Open Nut | N/A | N/A | Wear Resistant | $1,155.03 | ||
| HSB-28-1-SE-075-2 | 2.875" | 3.75" | 1/2" | Sprue Nut | 0.75" | 0.078" | Standard | $944.33 | ||
| HSB-28-1-SE-075F-2 | 2.875" | 3.75" | 1/2" | Sprue Nut | 0.75" | 0.078" | Flow Through | $1,065.46 | ||
| HSB-28-1-SE-075W-2 | 2.875" | 3.75" | 1/2" | Sprue Nut | 0.75" | 0.078" | Wear Resistant | $1,080.46 | ||
| HSB-28-1-SE-100-2 | 2.875" | 3.75" | 1/2" | Sprue Nut | 1" | 0.078" | Standard | $935.75 | ||
| HSB-28-1-SE-100F-2 | 2.875" | 3.75" | 1/2" | Sprue Nut | 1" | 0.078" | Flow Through | $1,056.88 | ||
| HSB-28-1-SE-100W-2 | 2.875" | 3.75" | 1/2" | Sprue Nut | 1" | 0.078" | Wear Resistant | $1,071.88 | ||
| HSB-28-1-SN-075-2 | 2.875" | 3.75" | 1/2" | Bush Nut | 0.75" | 0.059" | Standard | $1,087.49 | ||
| HSB-28-1-SN-075F-2 | 2.875" | 3.75" | 1/2" | Bush Nut | 0.75" | 0.059" | Flow Through | $1,139.01 | ||
| HSB-28-1-SN-075W-2 | 2.875" | 3.75" | 1/2" | Bush Nut | 0.75" | 0.059" | Wear Resistant | $1,143.62 | ||
| HSB-28-1-SN-075XS-2 | 2.875" | 4.375" | 1/2" | Bush Nut | 0.75" | 0.059" | Standard | $1,093.65 | ||
| HSB-28-1-SN-075XSF-2 | 2.875" | 4.375" | 1/2" | Bush Nut | 0.75" | 0.059" | Flow Through | $1,145.17 | ||
| HSB-28-1-SN-075XSW-2 | 2.875" | 4.375" | 1/2" | Bush Nut | 0.75" | 0.059" | Wear Resistant | $1,149.78 | ||
| HSB-28-1-SN-100-2 | 2.875" | 3.75" | 1/2" | Bush Nut | 1" | 0.059" | Standard | $1,098.90 | ||
| HSB-28-1-SN-100F-2 | 2.875" | 3.75" | 1/2" | Bush Nut | 1" | 0.059" | Flow Through | $1,150.42 | ||
| HSB-28-1-SN-100W-2 | 2.875" | 3.75" | 1/2" | Bush Nut | 1" | 0.059" | Wear Resistant | $1,155.03 | ||
| HSB-28-1-SN-100XS-2 | 2.875" | 4.375" | 1/2" | Bush Nut | 1" | 0.059" | Standard | $1,099.40 | ||
| HSB-28-1-SN-100XSF-2 | 2.875" | 4.375" | 1/2" | Bush Nut | 1" | 0.059" | Flow Through | $1,150.92 | ||
| HSB-28-1-SN-100XSW-2 | 2.875" | 4.375" | 1/2" | Bush Nut | 1" | 0.059" | Wear Resistant | $1,155.53 | ||
| HSB-28-2-EF-075-125-2 | 2.875" | 3.75" | 3/4" | Sprue Nut | 0.75" | 0.125" | N/A | $889.72 | ||
| HSB-28-2-EF-075-2 | 2.875" | 3.75" | 3/4" | Sprue Nut | 0.75" | 0.078" | N/A | $873.12 | ||
| HSB-28-2-EF-075XS-078-2 | 2.875" | 4.375" | 3/4" | Sprue Nut | 0.75" | 0.078" | N/A | $889.72 | ||
| HSB-28-2-EF-075XS-2 | 2.875" | 4.375" | 3/4" | Sprue Nut | 0.75" | 0.125" | N/A | $873.12 | ||
| HSB-28-2-EF-100-125-2 | 2.875" | 3.75" | 3/4" | Sprue Nut | 1" | 0.125" | N/A | $906.61 | ||
| HSB-28-2-EF-100-2 | 2.875" | 3.75" | 3/4" | Sprue Nut | 1" | 0.078" | N/A | $873.12 | ||
| HSB-28-2-EF-100XS-078-2 | 2.875" | 4.375" | 3/4" | Sprue Nut | 1" | 0.078" | N/A | $906.61 | ||
| HSB-28-2-EF-100XS-2 | 2.875" | 4.375" | 3/4" | Sprue Nut | 1" | 0.125" | N/A | $882.13 | ||
| HSB-28-2-ON-2 | 2.875" | 3.75" | 3/4" | Open Nut | N/A | N/A | Standard | $1,098.90 | ||
| HSB-28-2-ON-F-2 | 2.875" | 3.75" | 3/4" | Open Nut | N/A | N/A | Flow Through | $1,150.42 | ||
| HSB-28-2-ON-W-2 | 2.875" | 3.75" | 3/4" | Open Nut | N/A | N/A | Wear Resistant | $1,155.03 | ||
| HSB-28-2-SE-075-2 | 2.875" | 3.75" | 3/4" | Sprue Nut | 0.75" | 0.078" | Standard | $944.33 | ||
| HSB-28-2-SE-075F-2 | 2.875" | 3.75" | 3/4" | Sprue Nut | 0.75" | 0.078" | Flow Through | $1,065.46 | ||
| HSB-28-2-SE-075W-2 | 2.875" | 3.75" | 3/4" | Sprue Nut | 0.75" | 0.078" | Wear Resistant | $1,080.46 | ||
| HSB-28-2-SE-100-2 | 2.875" | 3.75" | 3/4" | Sprue Nut | 1" | 0.078" | Standard | $935.75 | ||
| HSB-28-2-SE-100F-2 | 2.875" | 3.75" | 3/4" | Sprue Nut | 1" | 0.078" | Flow Through | $1,056.88 | ||
| HSB-28-2-SE-100W-2 | 2.875" | 3.75" | 3/4" | Sprue Nut | 1" | 0.078" | Wear Resistant | $1,071.88 | ||
| HSB-28-2-SN-075-2 | 2.875" | 3.75" | 3/4" | Bush Nut | 0.75" | 0.059" | Standard | $1,087.49 | ||
| HSB-28-2-SN-075F-2 | 2.875" | 3.75" | 3/4" | Bush Nut | 0.75" | 0.059" | Flow Through | $1,139.01 | ||
| HSB-28-2-SN-075W-2 | 2.875" | 3.75" | 3/4" | Bush Nut | 0.75" | 0.059" | Wear Resistant | $1,143.62 | ||
| HSB-28-2-SN-075XS-2 | 2.875" | 4.375" | 3/4" | Bush Nut | 0.75" | 0.059" | Standard | $1,093.65 | ||
| HSB-28-2-SN-075XSF-2 | 2.875" | 4.375" | 3/4" | Bush Nut | 0.75" | 0.059" | Flow Through | $1,145.17 | ||
| HSB-28-2-SN-075XSW-2 | 2.875" | 4.375" | 3/4" | Bush Nut | 0.75" | 0.059" | Wear Resistant | $1,149.78 | ||
| HSB-28-2-SN-100-2 | 2.875" | 3.75" | 3/4" | Bush Nut | 1" | 0.059" | Standard | $1,098.90 | ||
| HSB-28-2-SN-100F-2 | 2.875" | 3.75" | 3/4" | Bush Nut | 1" | 0.059" | Flow Through | $1,150.42 | ||
| HSB-28-2-SN-100W-2 | 2.875" | 3.75" | 3/4" | Bush Nut | 1" | 0.059" | Wear Resistant | $1,155.03 | ||
| HSB-28-2-SN-100XS-2 | 2.875" | 4.375" | 3/4" | Bush Nut | 1" | 0.059" | Standard | $1,099.40 | ||
| HSB-28-2-SN-100XSF-2 | 2.875" | 4.375" | 3/4" | Bush Nut | 1" | 0.059" | Flow Through | $1,150.92 | ||
| HSB-28-2-SN-100XSW-2 | 2.875" | 4.375" | 3/4" | Bush Nut | 1" | 0.059" | Wear Resistant | $1,155.53 | ||
| HSB-33-1-EF-075-125-2 | 3.375" | 4.25" | 1/2" | Sprue Nut | 0.75" | 0.125" | N/A | $913.62 | ||
| HSB-33-1-EF-075-2 | 3.375" | 4.25" | 1/2" | Sprue Nut | 0.75" | 0.078" | N/A | $897.02 | ||
| HSB-33-1-EF-075XS-078-2 | 3.375" | 4.875" | 1/2" | Sprue Nut | 0.75" | 0.078" | N/A | $913.62 | ||
| HSB-33-1-EF-075XS-2 | 3.375" | 4.875" | 1/2" | Sprue Nut | 0.75" | 0.125" | N/A | $897.02 | ||
| HSB-33-1-EF-100-125-2 | 3.375" | 4.25" | 1/2" | Sprue Nut | 1" | 0.125" | N/A | $930.51 | ||
| HSB-33-1-EF-100-2 | 3.375" | 4.25" | 1/2" | Sprue Nut | 1" | 0.078" | N/A | $897.02 | ||
| HSB-33-1-EF-100XS-078-2 | 3.375" | 4.875" | 1/2" | Sprue Nut | 1" | 0.078" | N/A | $930.51 | ||
| HSB-33-1-EF-100XS-2 | 3.375" | 4.875" | 1/2" | Sprue Nut | 1" | 0.125" | N/A | $906.03 | ||
| HSB-33-1-ON-2 | 3.375" | 4.25" | 1/2" | Open Nut | N/A | N/A | Standard | $1,122.80 | ||
| HSB-33-1-ON-F-2 | 3.375" | 4.25" | 1/2" | Open Nut | N/A | N/A | Flow Through | $1,174.32 | ||
| HSB-33-1-ON-W-2 | 3.375" | 4.25" | 1/2" | Open Nut | N/A | N/A | Wear Resistant | $1,178.93 | ||
| HSB-33-1-SE-075-2 | 3.375" | 4.25" | 1/2" | Sprue Nut | 0.75" | 0.078" | Standard | $968.23 | ||
| HSB-33-1-SE-075F-2 | 3.375" | 4.25" | 1/2" | Sprue Nut | 0.75" | 0.078" | Flow Through | $1,089.37 | ||
| HSB-33-1-SE-075W-2 | 3.375" | 4.25" | 1/2" | Sprue Nut | 0.75" | 0.078" | Wear Resistant | $1,104.36 | ||
| HSB-33-1-SE-100-2 | 3.375" | 4.25" | 1/2" | Sprue Nut | 1" | 0.078" | Standard | $959.66 | ||
| HSB-33-1-SE-100F-2 | 3.375" | 4.25" | 1/2" | Sprue Nut | 1" | 0.078" | Flow Through | $1,080.79 | ||
| HSB-33-1-SE-100W-2 | 3.375" | 4.25" | 1/2" | Sprue Nut | 1" | 0.078" | Wear Resistant | $1,095.79 | ||
| HSB-33-1-SN-075-2 | 3.375" | 4.25" | 1/2" | Bush Nut | 0.75" | 0.059" | Standard | $1,111.40 | ||
| HSB-33-1-SN-075F-2 | 3.375" | 4.25" | 1/2" | Bush Nut | 0.75" | 0.059" | Flow Through | $1,162.92 | ||
| HSB-33-1-SN-075W-2 | 3.375" | 4.25" | 1/2" | Bush Nut | 0.75" | 0.059" | Wear Resistant | $1,167.53 | ||
| HSB-33-1-SN-075XS-2 | 3.375" | 4.875" | 1/2" | Bush Nut | 0.75" | 0.059" | Standard | $1,117.55 | ||
| HSB-33-1-SN-075XSF-2 | 3.375" | 4.875" | 1/2" | Bush Nut | 0.75" | 0.059" | Flow Through | $1,169.07 | ||
| HSB-33-1-SN-075XSW-2 | 3.375" | 4.875" | 1/2" | Bush Nut | 0.75" | 0.059" | Wear Resistant | $1,173.68 | ||
| HSB-33-1-SN-100-2 | 3.375" | 4.25" | 1/2" | Bush Nut | 1" | 0.059" | Standard | $1,122.80 | ||
| HSB-33-1-SN-100F-2 | 3.375" | 4.25" | 1/2" | Bush Nut | 1" | 0.059" | Flow Through | $1,174.32 | ||
| HSB-33-1-SN-100W-2 | 3.375" | 4.25" | 1/2" | Bush Nut | 1" | 0.059" | Wear Resistant | $1,178.93 | ||
| HSB-33-1-SN-100XS-2 | 3.375" | 5.375" | 1/2" | Bush Nut | 1" | 0.059" | Standard | $1,123.30 | ||
| HSB-33-1-SN-100XSF-2 | 3.375" | 4.875" | 1/2" | Bush Nut | 1" | 0.059" | Flow Through | $1,174.83 | ||
| HSB-33-1-SN-100XSW-2 | 3.375" | 4.875" | 1/2" | Bush Nut | 1" | 0.059" | Wear Resistant | $1,179.44 | ||
| HSB-33-2-EF-075-125-2 | 3.375" | 4.25" | 3/4" | Sprue Nut | 0.75" | 0.125" | N/A | $913.62 | ||
| HSB-33-2-EF-075-2 | 3.375" | 4.25" | 3/4" | Sprue Nut | 0.75" | 0.078" | N/A | $897.02 | ||
| HSB-33-2-EF-075XS-078-2 | 3.375" | 4.875" | 3/4" | Sprue Nut | 0.75" | 0.078" | N/A | $913.62 | ||
| HSB-33-2-EF-075XS-2 | 3.375" | 4.875" | 3/4" | Sprue Nut | 0.75" | 0.125" | N/A | $897.02 | ||
| HSB-33-2-EF-100-125-2 | 3.375" | 4.25" | 3/4" | Sprue Nut | 1" | 0.125" | N/A | $930.51 | ||
| HSB-33-2-EF-100-2 | 3.375" | 4.25" | 3/4" | Sprue Nut | 1" | 0.078" | N/A | $897.02 | ||
| HSB-33-2-EF-100XS-078-2 | 3.375" | 4.875" | 3/4" | Sprue Nut | 1" | 0.078" | N/A | $930.51 | ||
| HSB-33-2-EF-100XS-2 | 3.375" | 4.875" | 3/4" | Sprue Nut | 1" | 0.125" | N/A | $906.03 | ||
| HSB-33-2-ON-2 | 3.375" | 4.25" | 3/4" | Open Nut | N/A | N/A | Standard | $1,122.80 | ||
| HSB-33-2-ON-F-2 | 3.375" | 4.25" | 3/4" | Open Nut | N/A | N/A | Flow Through | $1,174.32 | ||
| HSB-33-2-ON-W-2 | 3.375" | 4.25" | 3/4" | Open Nut | N/A | N/A | Wear Resistant | $1,178.93 | ||
| HSB-33-2-SE-075-2 | 3.375" | 4.25" | 3/4" | Sprue Nut | 0.75" | 0.078" | Standard | $968.23 | ||
| HSB-33-2-SE-075F-2 | 3.375" | 4.25" | 3/4" | Sprue Nut | 0.75" | 0.078" | Flow Through | $1,089.37 | ||
| HSB-33-2-SE-075W-2 | 3.375" | 4.25" | 3/4" | Sprue Nut | 0.75" | 0.078" | Wear Resistant | $1,104.36 | ||
| HSB-33-2-SE-100-2 | 3.375" | 4.25" | 3/4" | Sprue Nut | 1" | 0.078" | Standard | $959.66 | ||
| HSB-33-2-SE-100F-2 | 3.375" | 4.25" | 3/4" | Sprue Nut | 1" | 0.078" | Flow Through | $1,080.79 | ||
| HSB-33-2-SE-100W-2 | 3.375" | 4.25" | 3/4" | Sprue Nut | 1" | 0.078" | Wear Resistant | $1,095.79 | ||
| HSB-33-2-SN-075-2 | 3.375" | 4.25" | 3/4" | Bush Nut | 0.75" | 0.059" | Standard | $1,111.40 | ||
| HSB-33-2-SN-075F-2 | 3.375" | 4.25" | 3/4" | Bush Nut | 0.75" | 0.059" | Flow Through | $1,162.92 | ||
| HSB-33-2-SN-075W-2 | 3.375" | 4.25" | 3/4" | Bush Nut | 0.75" | 0.059" | Wear Resistant | $1,167.53 | ||
| HSB-33-2-SN-075XS-2 | 3.375" | 4.875" | 3/4" | Bush Nut | 0.75" | 0.059" | Standard | $1,117.55 | ||
| HSB-33-2-SN-075XSF-2 | 3.375" | 4.875" | 3/4" | Bush Nut | 0.75" | 0.059" | Flow Through | $1,169.07 | ||
| HSB-33-2-SN-075XSW-2 | 3.375" | 4.875" | 3/4" | Bush Nut | 0.75" | 0.059" | Wear Resistant | $1,173.68 | ||
| HSB-33-2-SN-100-2 | 3.375" | 4.25" | 3/4" | Bush Nut | 1" | 0.059" | Standard | $1,122.80 | ||
| HSB-33-2-SN-100F-2 | 3.375" | 4.25" | 3/4" | Bush Nut | 1" | 0.059" | Flow Through | $1,174.32 | ||
| HSB-33-2-SN-100W-2 | 3.375" | 4.25" | 3/4" | Bush Nut | 1" | 0.059" | Wear Resistant | $1,178.93 | ||
| HSB-33-2-SN-100XS-2 | 3.375" | 4.875" | 3/4" | Bush Nut | 1" | 0.059" | Standard | $1,123.30 | ||
| HSB-33-2-SN-100XSF-2 | 3.375" | 4.875" | 3/4" | Bush Nut | 1" | 0.059" | Flow Through | $1,174.83 | ||
| HSB-33-2-SN-100XSW-2 | 3.375" | 4.875" | 3/4" | Bush Nut | 1" | 0.059" | Wear Resistant | $1,179.44 | ||
| HSB-38-1-EF-075-125-2 | 3.875" | 4.75" | 1/2" | Sprue Nut | 0.75" | 0.125" | N/A | $933.36 | ||
| HSB-38-1-EF-075-2 | 3.875" | 4.75" | 1/2" | Sprue Nut | 0.75" | 0.078" | N/A | $916.76 | ||
| HSB-38-1-EF-075XS-078-2 | 3.875" | 5.375" | 1/2" | Sprue Nut | 0.75" | 0.078" | N/A | $933.36 | ||
| HSB-38-1-EF-075XS-2 | 3.875" | 5.375" | 1/2" | Sprue Nut | 0.75" | 0.125" | N/A | $916.76 | ||
| HSB-38-1-EF-100-125-2 | 3.875" | 4.75" | 1/2" | Sprue Nut | 1" | 0.125" | N/A | $950.25 | ||
| HSB-38-1-EF-100-2 | 3.875" | 4.75" | 1/2" | Sprue Nut | 1" | 0.078" | N/A | $916.76 | ||
| HSB-38-1-EF-100XS-078-2 | 3.875" | 5.375" | 1/2" | Sprue Nut | 1" | 0.078" | N/A | $950.25 | ||
| HSB-38-1-EF-100XS-2 | 3.875" | 5.375" | 1/2" | Sprue Nut | 1" | 0.125" | N/A | $925.77 | ||
| HSB-38-1-ON-2 | 3.875" | 4.75" | 1/2" | Open Nut | N/A | N/A | Standard | $1,142.54 | ||
| HSB-38-1-ON-F-2 | 3.875" | 4.75" | 1/2" | Open Nut | N/A | N/A | Flow Through | $1,194.06 | ||
| HSB-38-1-ON-W-2 | 3.875" | 4.75" | 1/2" | Open Nut | N/A | N/A | Wear Resistant | $1,198.67 | ||
| HSB-38-1-SE-075-2 | 3.875" | 4.75" | 1/2" | Sprue Nut | 0.75" | 0.078" | Standard | $987.97 | ||
| HSB-38-1-SE-075F-2 | 3.875" | 4.75" | 1/2" | Sprue Nut | 0.75" | 0.078" | Flow Through | $1,109.10 | ||
| HSB-38-1-SE-075W-2 | 3.875" | 4.75" | 1/2" | Sprue Nut | 0.75" | 0.078" | Wear Resistant | $1,124.10 | ||
| HSB-38-1-SE-100-2 | 3.875" | 4.75" | 1/2" | Sprue Nut | 1" | 0.078" | Standard | $979.39 | ||
| HSB-38-1-SE-100F-2 | 3.875" | 4.75" | 1/2" | Sprue Nut | 1" | 0.078" | Flow Through | $1,100.53 | ||
| HSB-38-1-SE-100W-2 | 3.875" | 4.75" | 1/2" | Sprue Nut | 1" | 0.078" | Wear Resistant | $1,115.52 | ||
| HSB-38-1-SN-075-2 | 3.875" | 4.75" | 1/2" | Bush Nut | 0.75" | 0.059" | Standard | $1,131.13 | ||
| HSB-38-1-SN-075F-2 | 3.875" | 4.75" | 1/2" | Bush Nut | 0.75" | 0.059" | Flow Through | $1,182.66 | ||
| HSB-38-1-SN-075W-2 | 3.875" | 4.75" | 1/2" | Bush Nut | 0.75" | 0.059" | Wear Resistant | $1,187.26 | ||
| HSB-38-1-SN-075XS-2 | 3.875" | 5.375" | 1/2" | Bush Nut | 0.75" | 0.059" | Standard | $1,137.29 | ||
| HSB-38-1-SN-075XSF-2 | 3.875" | 5.375" | 1/2" | Bush Nut | 0.75" | 0.059" | Flow Through | $1,188.81 | ||
| HSB-38-1-SN-075XSW-2 | 3.875" | 5.375" | 1/2" | Bush Nut | 0.75" | 0.059" | Wear Resistant | $1,193.42 | ||
| HSB-38-1-SN-100-2 | 3.875" | 4.75" | 1/2" | Bush Nut | 1" | 0.059" | Standard | $1,142.54 | ||
| HSB-38-1-SN-100F-2 | 3.875" | 4.75" | 1/2" | Bush Nut | 1" | 0.059" | Flow Through | $1,194.06 | ||
| HSB-38-1-SN-100W-2 | 3.875" | 4.75" | 1/2" | Bush Nut | 1" | 0.059" | Wear Resistant | $1,198.67 | ||
| HSB-38-1-SN-100XS-2 | 3.875" | 5.375" | 1/2" | Bush Nut | 1" | 0.059" | Standard | $1,143.04 | ||
| HSB-38-1-SN-100XSF-2 | 3.875" | 5.375" | 1/2" | Bush Nut | 1" | 0.059" | Flow Through | $1,194.56 | ||
| HSB-38-1-SN-100XSW-2 | 3.875" | 5.375" | 1/2" | Bush Nut | 1" | 0.059" | Wear Resistant | $1,199.17 | ||
| HSB-38-2-EF-075-125-2 | 3.875" | 4.75" | 3/4" | Sprue Nut | 0.75" | 0.125" | N/A | $933.36 | ||
| HSB-38-2-EF-075-2 | 3.875" | 4.75" | 3/4" | Sprue Nut | 0.75" | 0.078" | N/A | $916.76 | ||
| HSB-38-2-EF-075XS-078-2 | 3.875" | 5.375" | 3/4" | Sprue Nut | 0.75" | 0.078" | N/A | $933.36 | ||
| HSB-38-2-EF-075XS-2 | 3.875" | 5.375" | 3/4" | Sprue Nut | 0.75" | 0.125" | N/A | $916.76 | ||
| HSB-38-2-EF-100-125-2 | 3.875" | 4.75" | 3/4" | Sprue Nut | 1" | 0.125" | N/A | $950.25 | ||
| HSB-38-2-EF-100-2 | 3.875" | 4.75" | 3/4" | Sprue Nut | 1" | 0.078" | N/A | $916.76 | ||
| HSB-38-2-EF-100XS-078-2 | 3.875" | 5.375" | 3/4" | Sprue Nut | 1" | 0.078" | N/A | $950.25 | ||
| HSB-38-2-EF-100XS-2 | 3.875" | 5.375" | 3/4" | Sprue Nut | 1" | 0.125" | N/A | $925.77 | ||
| HSB-38-2-ON-2 | 3.875" | 4.75" | 3/4" | Open Nut | N/A | N/A | Standard | $1,142.54 | ||
| HSB-38-2-ON-F-2 | 3.875" | 4.75" | 3/4" | Open Nut | N/A | N/A | Flow Through | $1,194.06 | ||
| HSB-38-2-ON-W-2 | 3.875" | 4.75" | 3/4" | Open Nut | N/A | N/A | Wear Resistant | $1,198.67 | ||
| HSB-38-2-SE-075-2 | 3.875" | 4.75" | 3/4" | Sprue Nut | 0.75" | 0.078" | Standard | $987.97 | ||
| HSB-38-2-SE-075F-2 | 3.875" | 4.75" | 3/4" | Sprue Nut | 0.75" | 0.078" | Flow Through | $1,109.10 | ||
| HSB-38-2-SE-075W-2 | 3.875" | 4.75" | 3/4" | Sprue Nut | 0.75" | 0.078" | Wear Resistant | $1,124.10 | ||
| HSB-38-2-SE-100-2 | 3.875" | 4.75" | 3/4" | Sprue Nut | 1" | 0.078" | Standard | $979.39 | ||
| HSB-38-2-SE-100F-2 | 3.875" | 4.75" | 3/4" | Sprue Nut | 1" | 0.078" | Flow Through | $1,100.53 | ||
| HSB-38-2-SE-100W-2 | 3.875" | 4.75" | 3/4" | Sprue Nut | 1" | 0.078" | Wear Resistant | $1,115.52 | ||
| HSB-38-2-SN-075-2 | 3.875" | 4.75" | 3/4" | Bush Nut | 0.75" | 0.059" | Standard | $1,131.13 | ||
| HSB-38-2-SN-075F-2 | 3.875" | 4.75" | 3/4" | Bush Nut | 0.75" | 0.059" | Flow Through | $1,182.66 | ||
| HSB-38-2-SN-075W-2 | 3.875" | 4.75" | 3/4" | Bush Nut | 0.75" | 0.059" | Wear Resistant | $1,187.26 | ||
| HSB-38-2-SN-075XS-2 | 3.875" | 5.375" | 3/4" | Bush Nut | 0.75" | 0.059" | Standard | $1,137.29 | ||
| HSB-38-2-SN-075XSF-2 | 3.875" | 5.375" | 3/4" | Bush Nut | 0.75" | 0.059" | Flow Through | $1,188.81 | ||
| HSB-38-2-SN-075XSW-2 | 3.875" | 5.375" | 3/4" | Bush Nut | 0.75" | 0.059" | Wear Resistant | $1,193.42 | ||
| HSB-38-2-SN-100-2 | 3.875" | 4.75" | 3/4" | Bush Nut | 1" | 0.059" | Standard | $1,142.54 | ||
| HSB-38-2-SN-100F-2 | 3.875" | 4.75" | 3/4" | Bush Nut | 1" | 0.059" | Flow Through | $1,194.06 | ||
| HSB-38-2-SN-100W-2 | 3.875" | 4.75" | 3/4" | Bush Nut | 1" | 0.059" | Wear Resistant | $1,198.67 | ||
| HSB-38-2-SN-100XS-2 | 3.875" | 4.75" | 3/4" | Bush Nut | 1" | 0.059" | Standard | $1,143.04 | ||
| HSB-38-2-SN-100XSF-2 | 3.875" | 5.375" | 3/4" | Bush Nut | 1" | 0.059" | Flow Through | $1,194.56 | ||
| HSB-38-2-SN-100XSW-2 | 3.875" | 5.375" | 3/4" | Bush Nut | 1" | 0.059" | Wear Resistant | $1,199.17 | ||
| HSB-43-1-EF-075-125-2 | 4.375" | 5.25" | 1/2" | Sprue Nut | 0.75" | 0.125" | N/A | $949.97 | ||
| HSB-43-1-EF-075-2 | 4.375" | 5.25" | 1/2" | Sprue Nut | 0.75" | 0.078" | N/A | $933.38 | ||
| HSB-43-1-EF-075XS-078-2 | 4.375" | 5.875" | 1/2" | Sprue Nut | 0.75" | 0.078" | N/A | $949.97 | ||
| HSB-43-1-EF-075XS-2 | 4.375" | 5.875" | 1/2" | Sprue Nut | 0.75" | 0.125" | N/A | $933.38 | ||
| HSB-43-1-EF-100-125-2 | 4.375" | 5.25" | 1/2" | Sprue Nut | 1" | 0.125" | N/A | $966.86 | ||
| HSB-43-1-EF-100-2 | 4.375" | 5.25" | 1/2" | Sprue Nut | 1" | 0.078" | N/A | $933.38 | ||
| HSB-43-1-EF-100XS-078-2 | 4.375" | 5.875" | 1/2" | Sprue Nut | 1" | 0.078" | N/A | $966.86 | ||
| HSB-43-1-EF-100XS-2 | 4.375" | 5.875" | 1/2" | Sprue Nut | 1" | 0.125" | N/A | $942.38 | ||
| HSB-43-1-ON-2 | 4.375" | 5.25" | 1/2" | Open Nut | N/A | N/A | Standard | $1,159.15 | ||
| HSB-43-1-ON-F-2 | 4.375" | 5.25" | 1/2" | Open Nut | N/A | N/A | Flow Through | $1,210.67 | ||
| HSB-43-1-ON-W-2 | 4.375" | 5.25" | 1/2" | Open Nut | N/A | N/A | Wear Resistant | $1,215.28 | ||
| HSB-43-1-SE-075-2 | 4.375" | 5.25" | 1/2" | Sprue Nut | 0.75" | 0.078" | Standard | $1,004.58 | ||
| HSB-43-1-SE-075F-2 | 4.375" | 5.25" | 1/2" | Sprue Nut | 0.75" | 0.078" | Flow Through | $1,125.72 | ||
| HSB-43-1-SE-075W-2 | 4.375" | 5.25" | 1/2" | Sprue Nut | 0.75" | 0.078" | Wear Resistant | $1,140.72 | ||
| HSB-43-1-SE-100-2 | 4.375" | 5.25" | 1/2" | Sprue Nut | 1" | 0.078" | Standard | $996.01 | ||
| HSB-43-1-SE-100F-2 | 4.375" | 5.25" | 1/2" | Sprue Nut | 1" | 0.078" | Flow Through | $1,117.14 | ||
| HSB-43-1-SE-100W-2 | 4.375" | 5.25" | 1/2" | Sprue Nut | 1" | 0.078" | Wear Resistant | $1,132.14 | ||
| HSB-43-1-SN-075-2 | 4.375" | 5.25" | 1/2" | Bush Nut | 0.75" | 0.059" | Standard | $1,147.75 | ||
| HSB-43-1-SN-075F-2 | 4.375" | 5.25" | 1/2" | Bush Nut | 0.75" | 0.059" | Flow Through | $1,199.27 | ||
| HSB-43-1-SN-075W-2 | 4.375" | 5.25" | 1/2" | Bush Nut | 0.75" | 0.059" | Wear Resistant | $1,203.88 | ||
| HSB-43-1-SN-075XS-2 | 4.375" | 5.875" | 1/2" | Bush Nut | 0.75" | 0.059" | Standard | $1,153.90 | ||
| HSB-43-1-SN-075XSF-2 | 4.375" | 5.875" | 1/2" | Bush Nut | 0.75" | 0.059" | Flow Through | $1,205.42 | ||
| HSB-43-1-SN-075XSW-2 | 4.375" | 5.875" | 1/2" | Bush Nut | 0.75" | 0.059" | Wear Resistant | $1,210.03 | ||
| HSB-43-1-SN-100-2 | 4.375" | 5.25" | 1/2" | Bush Nut | 1" | 0.059" | Standard | $1,159.15 | ||
| HSB-43-1-SN-100F-2 | 4.375" | 5.25" | 1/2" | Bush Nut | 1" | 0.059" | Flow Through | $1,210.67 | ||
| HSB-43-1-SN-100W-2 | 4.375" | 5.25" | 1/2" | Bush Nut | 1" | 0.059" | Wear Resistant | $1,215.28 | ||
| HSB-43-1-SN-100XS-2 | 4.375" | 5.875" | 1/2" | Bush Nut | 1" | 0.059" | Standard | $1,159.66 | ||
| HSB-43-1-SN-100XSF-2 | 4.375" | 5.875" | 1/2" | Bush Nut | 1" | 0.059" | Flow Through | $1,211.18 | ||
| HSB-43-1-SN-100XSW-2 | 4.375" | 5.875" | 1/2" | Bush Nut | 1" | 0.059" | Wear Resistant | $1,215.79 | ||
| HSB-43-2-EF-075-125-2 | 4.375" | 5.25" | 3/4" | Sprue Nut | 0.75" | 0.125" | N/A | $949.97 | ||
| HSB-43-2-EF-075-2 | 4.375" | 5.25" | 3/4" | Sprue Nut | 0.75" | 0.078" | N/A | $933.38 | ||
| HSB-43-2-EF-075XS-078-2 | 4.375" | 5.875" | 3/4" | Sprue Nut | 0.75" | 0.078" | N/A | $949.97 | ||
| HSB-43-2-EF-075XS-2 | 4.375" | 5.875" | 3/4" | Sprue Nut | 0.75" | 0.125" | N/A | $933.38 | ||
| HSB-43-2-EF-100-125-2 | 4.375" | 5.25" | 3/4" | Sprue Nut | 1" | 0.125" | N/A | $966.86 | ||
| HSB-43-2-EF-100-2 | 4.375" | 5.25" | 3/4" | Sprue Nut | 1" | 0.078" | N/A | $933.38 | ||
| HSB-43-2-EF-100XS-078-2 | 4.375" | 5.875" | 3/4" | Sprue Nut | 1" | 0.078" | N/A | $966.86 | ||
| HSB-43-2-EF-100XS-2 | 4.375" | 5.875" | 3/4" | Sprue Nut | 1" | 0.125" | N/A | $942.38 | ||
| HSB-43-2-ON-2 | 4.375" | 5.25" | 3/4" | Open Nut | N/A | N/A | Standard | $1,159.15 | ||
| HSB-43-2-ON-F-2 | 4.375" | 5.25" | 3/4" | Open Nut | N/A | N/A | Flow Through | $1,210.67 | ||
| HSB-43-2-ON-W-2 | 4.375" | 5.25" | 3/4" | Open Nut | N/A | N/A | Wear Resistant | $1,215.28 | ||
| HSB-43-2-SE-075-2 | 4.375" | 5.25" | 3/4" | Sprue Nut | 0.75" | 0.078" | Standard | $1,004.58 | ||
| HSB-43-2-SE-075F-2 | 4.375" | 5.25" | 3/4" | Sprue Nut | 0.75" | 0.078" | Flow Through | $1,125.72 | ||
| HSB-43-2-SE-075W-2 | 4.375" | 5.25" | 3/4" | Sprue Nut | 0.75" | 0.078" | Wear Resistant | $1,140.72 | ||
| HSB-43-2-SE-100-2 | 4.375" | 5.25" | 3/4" | Sprue Nut | 1" | 0.078" | Standard | $996.01 | ||
| HSB-43-2-SE-100F-2 | 4.375" | 5.25" | 3/4" | Sprue Nut | 1" | 0.078" | Flow Through | $1,117.14 | ||
| HSB-43-2-SE-100W-2 | 4.375" | 5.25" | 3/4" | Sprue Nut | 1" | 0.078" | Wear Resistant | $1,132.14 | ||
| HSB-43-2-SN-075-2 | 4.375" | 5.25" | 3/4" | Bush Nut | 0.75" | 0.059" | Standard | $1,147.75 | ||
| HSB-43-2-SN-075F-2 | 4.375" | 5.25" | 3/4" | Bush Nut | 0.75" | 0.059" | Flow Through | $1,199.27 | ||
| HSB-43-2-SN-075W-2 | 4.375" | 5.25" | 3/4" | Bush Nut | 0.75" | 0.059" | Wear Resistant | $1,203.88 | ||
| HSB-43-2-SN-075XS-2 | 4.375" | 5.875" | 3/4" | Bush Nut | 0.75" | 0.059" | Standard | $1,153.90 | ||
| HSB-43-2-SN-075XSF-2 | 4.375" | 5.875" | 3/4" | Bush Nut | 0.75" | 0.059" | Flow Through | $1,205.42 | ||
| HSB-43-2-SN-075XSW-2 | 4.375" | 5.875" | 3/4" | Bush Nut | 0.75" | 0.059" | Wear Resistant | $1,210.03 | ||
| HSB-43-2-SN-100-2 | 4.375" | 5.25" | 3/4" | Bush Nut | 1" | 0.059" | Standard | $1,159.15 | ||
| HSB-43-2-SN-100F-2 | 4.375" | 5.25" | 3/4" | Bush Nut | 1" | 0.059" | Flow Through | $1,210.67 | ||
| HSB-43-2-SN-100W-2 | 4.375" | 5.25" | 3/4" | Bush Nut | 1" | 0.059" | Wear Resistant | $1,215.28 | ||
| HSB-43-2-SN-100XS-2 | 4.375" | 5.875" | 3/4" | Bush Nut | 1" | 0.059" | Standard | $1,159.66 | ||
| HSB-43-2-SN-100XSF-2 | 4.375" | 5.875" | 3/4" | Bush Nut | 1" | 0.059" | Flow Through | $1,211.18 | ||
| HSB-43-2-SN-100XSW-2 | 4.375" | 5.875" | 3/4" | Bush Nut | 1" | 0.059" | Wear Resistant | $1,215.79 |
