- Unit of Measure - Inch
- Armorclad surface treatment on slide
- Reduces lead time
- Mounting screws provided
- Units are finished with grind stock on overall width, bottom of guide shoe, and wedge angle

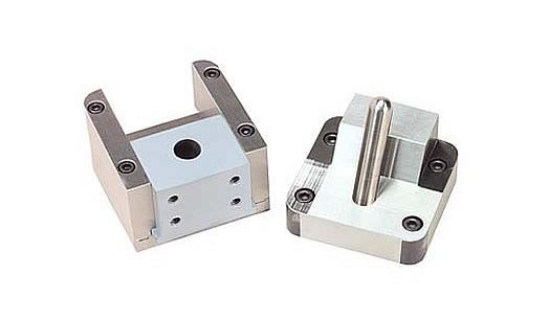

300 Series Ready Slide Assemblies
PCS 300 Series Ready Slide Assemblies are an off-the shelf alternative to the complex machining associated with slides. These assemblies are easily installed and are finished with grind stock on the overall width, bottom of guide shoe and wedge angle. The lubricious properties of the Ready Slide's armorclad treatment provide a dependable, smooth acting slide system. View more information about 300 Series Ready Slide Assemblies.
| Item Number | Description | Overall Height | Overall Width | Max Cam Stroke | Slide A | Guide H | Slide B | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| RSA-300-AP | Angle Pin, Slide | N/A | N/A | N/A | N/A | N/A | N/A | $31.30 | ||
| RSA-300-WP | Wear Plate, Slide Assembly | N/A | N/A | N/A | N/A | N/A | N/A | $256.66 | ||
| RSA-301 | Ready Slide Assembly | 1.68 | 3 | 1.125 | 0.875 | 0.625 | 1.875 | $1,051.66 | ||
| RSA-301-GL | L Gibb, Slide Assembly | N/A | N/A | N/A | N/A | N/A | N/A | $172.77 | ||
| RSA-301-GR | R Gibb, Slide Assembly | N/A | N/A | N/A | N/A | N/A | N/A | $172.77 | ||
| RSA-301-SL | Slide, Slide Assembly | N/A | N/A | N/A | 0.875 | N/A | 1.875 | $269.75 | ||
| RSA-301-W | Wedge, Slide Assembly | N/A | N/A | N/A | N/A | N/A | N/A | $281.69 | ||
| RSA-302 | Ready Slide Assembly | 2.43 | 3 | 1 | 0.875 | 1.125 | 2 | $1,070.44 | ||
| RSA-302-GL | L Gibb, Slide Assembly | N/A | N/A | N/A | N/A | N/A | N/A | $177.78 | ||
| RSA-302-GR | R Gibb, Slide Assembly | N/A | N/A | N/A | N/A | N/A | N/A | $177.78 | ||
| RSA-302-SL | Slide, Slide Assembly | N/A | N/A | N/A | 0.875 | N/A | 2 | $279.98 | ||
| RSA-303 | Ready Slide Assembly | 2.93 | 3 | 1 | 0.875 | 1.625 | 2 | $1,095.48 | ||
| RSA-303-GL | L Gibb, Slide Assembly | N/A | N/A | N/A | N/A | N/A | N/A | $184.04 | ||
| RSA-303-GR | R Gibb, Slide Assembly | N/A | N/A | N/A | N/A | N/A | N/A | $184.04 | ||
| RSA-303-SL | Slide, Slide Assembly | N/A | N/A | N/A | 0.875 | N/A | 2 | $281.03 | ||
| RSA-323-W | Wedge, Slide Assembly | N/A | N/A | N/A | N/A | N/A | N/A | $285.45 |
