- PCS Polimax™ 800 series hot sprue bushings
- 14mm flow diameter
- Requires 800 series nozzle tip assemblies
- 240v with J type thermocouple

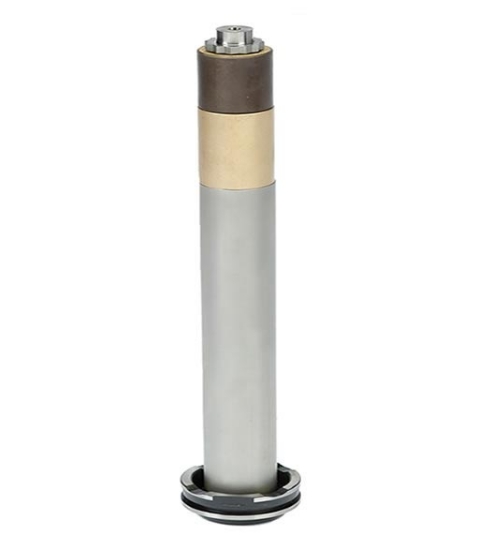

Standard Polimax 800 Series Hot Sprue Bushing Assemblies
Polimax™ 200 Series Hot Sprue Bushing Assemblies replace the standard cold sprue bushing. Polimax™ Hot Sprue Bushings reduce waste and minimize cycle time. These Hot Sprue Bushings can produce parts made of commodity grade resins, with weights up to 800 grams.
| Item Number | L Dimension ( mm ) | R Radius | Head Heater Included | Tip Style | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| HDP14150-R050 | 150 | 1/2 in | No | Purchased Separately | $1,037.97 | ||
| HDP14475-R050 | 475 | 1/2 in | No | Purchased Separately | $2,666.11 |
