- Unit of Measure - Inch
- Modular construction
- 6061-T6 Aluminum Material
- Anodized for corrosion protection
- Pre-drilled mounting holes
- Viton O-Rings and Tie Rods included
- 90° inlet available
- Maximum operating temperature – 400F/204C
FB3 Port-to-Divide Assemblies

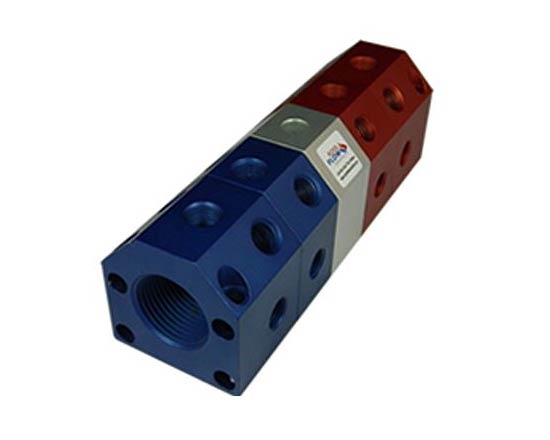

The modular design of the Kool Flow Manifold™ allows for changes to be made at any time according to your needs. FB3 Series manifolds have an option for a 1-1/4" or 1-1/2" inlet hole size along with the option of either a 3/8" or 1/2" outlet hole size. The Port to Divide Assembly combines your cooling needs into one manifold. Separate hot and cold with a mid block and mount in one easy location. Kool Flow Manifolds are also available with a 90° inlet option.
| Item Number | 90 Degree Inlet | Block Size | Dimension A | Dimension B | Inlet Hole Size | Mounting Hole Size | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| FB3-1-6-PD | N/A | 3.00 x 3.00 | 5.25 | 6 | NA | 5/16 | $148.32 | ||
| FB3-1-6-PD-1.25 | N/A | 3.00 x 3.00 | 5.25 | 6 | 1 1/4 NPT | 5/16 | $148.32 | ||
| FB3-1-6-PD-1.5 | N/A | 3.00 x 3.00 | 5.25 | 6 | 1 1/2 NPT | 5/16 | $148.32 | ||
| FB3-1-8-PD | N/A | 3.00 x 3.00 | 5.25 | 6 | NA | 5/16 | $148.32 | ||
| FB3-1-8-PD-1.25 | N/A | 3.00 x 3.00 | 5.25 | 6 | 1 1/4 NPT | 5/16 | $148.32 | ||
| FB3-1-8-PD-1.5 | N/A | 3.00 x 3.00 | 5.25 | 6 | 1 1/2 NPT | 5/16 | $148.32 | ||
| FB3-2-6-PD | N/A | 3.00 x 3.00 | 8.25 | 9 | NA | 5/16 | $250.00 | ||
| FB3-2-6-PD-1.25 | N/A | 3.00 x 3.00 | 8.25 | 9 | 1 1/4 NPT | 5/16 | $250.00 | ||
| FB3-2-6-PD-1.5 | N/A | 3.00 x 3.00 | 8.25 | 9 | 1 1/2 NPT | 5/16 | $250.00 | ||
| FB3-2-8-PD | N/A | 3.00 x 3.00 | 8.25 | 9 | NA | 5/16 | $250.00 | ||
| FB3-2-8-PD-1.25 | N/A | 3.00 x 3.00 | 8.25 | 9 | 1 1/4 NPT | 5/16 | $250.00 | ||
| FB3-2-8-PD-1.5 | N/A | 3.00 x 3.00 | 8.25 | 9 | 1 1/2 NPT | 5/16 | $250.00 | ||
| FB3-3-6-PD | N/A | 3.00 x 3.00 | 11.25 | 12 | NA | 5/16 | $336.00 | ||
| FB3-3-6-PD-1.25 | N/A | 3.00 x 3.00 | 11.25 | 12 | 1 1/4 NPT | 5/16 | $336.00 | ||
| FB3-3-6-PD-1.5 | N/A | 3.00 x 3.00 | 11.25 | 12 | 1 1/2 NPT | 5/16 | $336.00 | ||
| FB3-3-8-PD | N/A | 3.00 x 3.00 | 11.25 | 12 | NA | 5/16 | $336.00 | ||
| FB3-3-8-PD-1.25 | N/A | 3.00 x 3.00 | 11.25 | 12 | 1 1/4 NPT | 5/16 | $336.00 | ||
| FB3-3-8-PD-1.5 | N/A | 3.00 x 3.00 | 11.25 | 12 | 1 1/2 NPT | 5/16 | $336.00 | ||
| FB3-4-6-PD | N/A | 3.00 x 3.00 | 14.25 | 15 | NA | 5/16 | $405.53 | ||
| FB3-4-6-PD-1.25 | N/A | 3.00 x 3.00 | 14.25 | 15 | 1 1/4 NPT | 5/16 | $405.53 | ||
| FB3-4-6-PD-1.5 | N/A | 3.00 x 3.00 | 14.25 | 15 | 1 1/2 NPT | 5/16 | $405.53 | ||
| FB3-4-8-PD | N/A | 3.00 x 3.00 | 14.25 | 15 | NA | 5/16 | $422.00 | ||
| FB3-4-8-PD-1.25 | N/A | 3.00 x 3.00 | 14.25 | 15 | 1 1/4 NPT | 5/16 | $422.00 | ||
| FB3-4-8-PD-1.5 | N/A | 3.00 x 3.00 | 14.25 | 15 | 1 1/2 NPT | 5/16 | $422.00 | ||
| FB3-5-6-PD | N/A | 3.00 x 3.00 | 17.25 | 18 | NA | 5/16 | $500.00 | ||
| FB3-5-6-PD-1.25 | N/A | 3.00 x 3.00 | 17.25 | 18 | 1 1/4 NPT | 5/16 | $500.00 | ||
| FB3-5-6-PD-1.5 | N/A | 3.00 x 3.00 | 17.25 | 18 | 1 1/2 NPT | 5/16 | $500.00 | ||
| FB3-5-8-PD | N/A | 3.00 x 3.00 | 17.25 | 18 | NA | 5/16 | $500.00 | ||
| FB3-5-8-PD-1.25 | N/A | 3.00 x 3.00 | 17.25 | 18 | 1 1/4 NPT | 5/16 | $500.00 | ||
| FB3-5-8-PD-1.5 | N/A | 3.00 x 3.00 | 17.25 | 18 | 1 1/2 NPT | 5/16 | $500.00 | ||
| FB390-1-6-PD | Yes | 3.00 x 3.00 | 6.75 | 7.5 | NA | 5/16 | $221.65 | ||
| FB390-1-6-PD-1.25 | Yes | 3.00 x 3.00 | 6.75 | 7.5 | 1 1/4 NPT | 5/16 | $221.65 | ||
| FB390-1-6-PD-1.5 | Yes | 3.00 x 3.00 | 6.75 | 7.5 | 1 1/2 NPT | 5/16 | $221.65 | ||
| FB390-1-8-PD | Yes | 3.00 x 3.00 | 6.75 | 7.5 | NA | 5/16 | $221.65 | ||
| FB390-1-8-PD-1.25 | Yes | 3.00 x 3.00 | 6.75 | 7.5 | 1 1/4 NPT | 5/16 | $221.65 | ||
| FB390-1-8-PD-1.5 | Yes | 3.00 x 3.00 | 6.75 | 7.5 | 1 1/2 NPT | 5/16 | $221.65 | ||
| FB390-2-6-PD | Yes | 3.00 x 3.00 | 9.75 | 10.5 | NA | 5/16 | $299.00 | ||
| FB390-2-6-PD-1.25 | Yes | 3.00 x 3.00 | 9.75 | 10.5 | 1 1/4 NPT | 5/16 | $299.00 | ||
| FB390-2-6-PD-1.5 | Yes | 3.00 x 3.00 | 9.75 | 10.5 | 1 1/2 NPT | 5/16 | $299.00 | ||
| FB390-2-8-PD | Yes | 3.00 x 3.00 | 9.75 | 10.5 | NA | 5/16 | $299.00 | ||
| FB390-2-8-PD-1.25 | Yes | 3.00 x 3.00 | 9.75 | 10.5 | 1 1/4 NPT | 5/16 | $299.00 | ||
| FB390-2-8-PD-1.5 | Yes | 3.00 x 3.00 | 9.75 | 10.5 | 1 1/2 NPT | 5/16 | $299.00 | ||
| FB390-3-6-PD | Yes | 3.00 x 3.00 | 12.75 | 13.5 | NA | 5/16 | $375.00 | ||
| FB390-3-6-PD-1.25 | Yes | 3.00 x 3.00 | 12.75 | 13.5 | 1 1/4 NPT | 5/16 | $375.00 | ||
| FB390-3-6-PD-1.5 | Yes | 3.00 x 3.00 | 12.75 | 13.5 | 1 1/2 NPT | 5/16 | $375.00 | ||
| FB390-3-8-PD | Yes | 3.00 x 3.00 | 12.75 | 13.5 | NA | 5/16 | $375.00 | ||
| FB390-3-8-PD-1.25 | Yes | 3.00 x 3.00 | 12.75 | 13.5 | 1 1/4 NPT | 5/16 | $375.00 | ||
| FB390-3-8-PD-1.5 | Yes | 3.00 x 3.00 | 12.75 | 13.5 | 1 1/2 NPT | 5/16 | $375.00 | ||
| FB390-4-6-PD | Yes | 3.00 x 3.00 | 15.75 | 16.5 | NA | 5/16 | $461.00 | ||
| FB390-4-6-PD-1.25 | Yes | 3.00 x 3.00 | 15.75 | 16.5 | 1 1/4 NPT | 5/16 | $461.00 | ||
| FB390-4-6-PD-1.5 | Yes | 3.00 x 3.00 | 15.75 | 16.5 | 1 1/2 NPT | 5/16 | $461.00 | ||
| FB390-4-8-PD | Yes | 3.00 x 3.00 | 15.75 | 16.5 | NA | 5/16 | $461.00 | ||
| FB390-4-8-PD-1.25 | Yes | 3.00 x 3.00 | 15.75 | 16.5 | 1 1/4 NPT | 5/16 | $461.00 | ||
| FB390-4-8-PD-1.5 | Yes | 3.00 x 3.00 | 15.75 | 16.5 | 1 1/2 NPT | 5/16 | $461.00 | ||
| FB390-5-6-PD | Yes | 3.00 x 3.00 | 18.75 | 19.5 | NA | 5/16 | $538.00 | ||
| FB390-5-6-PD-1.25 | Yes | 3.00 x 3.00 | 18.75 | 19.5 | 1 1/4 NPT | 5/16 | $538.00 | ||
| FB390-5-6-PD-1.5 | Yes | 3.00 x 3.00 | 18.75 | 19.5 | 1 1/2 NPT | 5/16 | $538.00 | ||
| FB390-5-8-PD | Yes | 3.00 x 3.00 | 18.75 | 19.5 | NA | 5/16 | $538.00 | ||
| FB390-5-8-PD-1.25 | Yes | 3.00 x 3.00 | 18.75 | 19.5 | 1 1/4 NPT | 5/16 | $538.00 | ||
| FB390-5-8-PD-1.5 | Yes | 3.00 x 3.00 | 18.75 | 19.5 | 1 1/2 NPT | 5/16 | $538.00 |
