- Unit of Measure - Inch
- Pre-drilled screw and dowel holes
- Plugs cover 25-30% of the wear surface
- Graphite plugs for greaseless applications

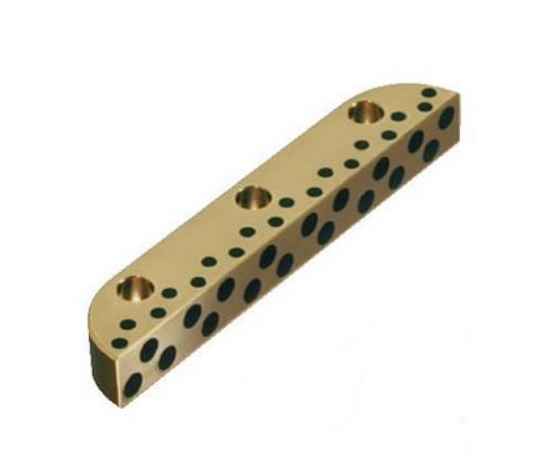

Self-Lubricating Square Gibs
PCS Self-Lubricating Square Gibs are manufactured in inch sizes from 1” to 2” wide and lengths up to 12”. They come standard with mounting holes for ease of assembly. The 12” lengths are available with or without mounting holes.
| Item Number | A | B | C | G | L | M | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| 12SG96NG | 1.5 | 0 | 0 | 0.86 | 12 | N/A | $346.67 | ||
| 6SG32G | 1 | 2 | 3 | 0.39 | 4 | 0.625 | $144.91 | ||
| 6SG40G | 1 | 2.5 | 4 | 0.39 | 5 | 0.625 | $167.34 | ||
| 6SG48G | 1 | 3 | 5 | 0.39 | 6 | 0.625 | $200.55 | ||
| 6SG64G | 1 | 3 | 5 | 0.39 | 8 | 0.625 | $229.75 | ||
| 6SG80G | 1 | 3 | 5 | 0.39 | 10 | 0.625 | $272.25 | ||
| 6SG96G | 1 | 3 | 5 | 0.39 | 12 | 0.625 | $290.95 | ||
| 6SG96NG | 0 | 0 | 0 | 0.39 | 12 | N/A | $261.87 | ||
| 8SG32G | 1 | 2 | 3 | 0.62 | 4 | 0.875 | $156.16 | ||
| 8SG40G | 1 | 2.5 | 4 | 0.62 | 5 | 0.875 | $181.52 | ||
| 8SG48G | 1 | 3 | 5 | 0.62 | 6 | 0.875 | $205.59 | ||
| 8SG64G | 1 | 3 | 5 | 0.62 | 8 | 0.875 | $250.85 | ||
| 8SG80G | 1 | 3 | 5 | 0.62 | 10 | 0.875 | $298.16 | ||
| 8SG96G | 1 | 3 | 5 | 0.62 | 12 | 0.875 | $345.51 | ||
| 8SG96NG | 0 | 0 | 0 | 0.62 | 12 | N/A | $310.95 |
