- Available in port quantities of 4, 6, and 8
- Available in 1/4", 3/8" and 1/2" (NPT) Port Sizes
- 3/4, 1" & 1-1/2" (NPT) Supply Threads - one end only
- Optional Flowmeters/Regulator available (1/2" only)
- Stainless Steel
- Optional Temperature Gauge available
- Operating Limits - 450°F (232°C) at 450psi (31bar) and 600°F (315°C) at 100psi (6.9bar)

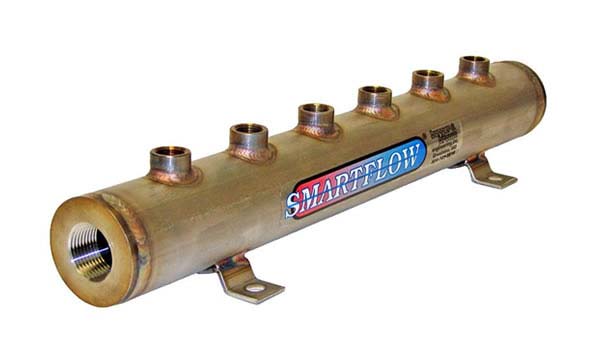

Smartflow®'s High Pressure and High Temperature Stainless Steel Manifolds
PCS Company offers Smarflow® High Pressure and High Temperature Manifolds designed for use in pressurized hot water or hot oil cooling systems. SMARTFLOW® manifolds are ideal for connection to temperature control units in an injection molding environment. The manifolds are available with 3/4", 1", and 1-1/2" inlet sizes (one end only). Caution: Potential for personal injury exists in applications of this product. Approve thread sealant, hoses, and fittings must be used with high pressure and high temperature manifolds.
*NEW* - Use the Manifold Builder to configure your High Pressure and High Temperature Manifold with 3D Interactive visualization and CAD downloads.
| Item Number | Supply/Inlet Threads | Port Quantity | Port Size | Manifold Length | Weight(lbs.) | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|
| 12SSHT-4-2-2-A | 1-1/2" NPT | 4 | 1/4" NPT | 10.75" | 5.2 | Call For Availability | ||
| 12SSHT-4-3-2-A | 1-1/2" NPT | 4 | 3/8" NPT | 10.75" | 5.4 | Call For Availability | ||
| 12SSHT-4-4-2-A | 1-1/2" NPT | 4 | 1/2" NPT | 10.75" | 5.6 | Call For Availability | ||
| 12SSHT-6-3-2-A | 1-1/2" NPT | 6 | 3/8" NPT | 14.75" | 6.7 | Call For Availability | ||
| 12SSHT-6-4-2-A | 1-1/2" NPT | 6 | 1/2" NPT | 14.75" | 6.9 | Call For Availability | ||
| 12SSHT-8-3-2-A | 1-1/2" NPT | 8 | 3/8" NPT | 18.75" | 8.1 | Call For Availability | ||
| 12SSHT-8-4-2-A | 1-1/2" NPT | 8 | 1/2" NPT | 18.75" | 8.2 | Call For Availability | ||
| 6SSHT-4-2-2-A | 3/4" NPT | 4 | 1/4" NPT | 10.75" | 5.7 | Call For Availability | ||
| 6SSHT-4-3-2-A | 3/4" NPT | 4 | 3/8" NPT | 10.75" | 5.7 | Call For Availability | ||
| 6SSHT-4-4-2-A | 3/4" NPT | 4 | 1/2" NPT | 10.75" | 5.8 | Call For Availability | ||
| 6SSHT-6-2-2-A | 3/4" NPT | 6 | 1/4" NPT | 14.75" | 7 | Call For Availability | ||
| 6SSHT-6-3-2-A | 3/4" NPT | 6 | 3/8" NPT | 14.75" | 7 | Call For Availability | ||
| 6SSHT-6-4-2-A | 3/4" NPT | 6 | 1/2" NPT | 14.75" | 7.1 | Call For Availability | ||
| 6SSHT-8-2-2-A | 3/4" NPT | 8 | 1/4" NPT | 18.75" | 8.2 | Call For Availability | ||
| 6SSHT-8-3-2-A | 3/4" NPT | 8 | 3/8" NPT | 18.75" | 8.3 | Call For Availability | ||
| 6SSHT-8-4-2-A | 3/4" NPT | 8 | 1/2" NPT | 18.75" | 8.5 | Call For Availability | ||
| 8SSHT-4-3-2-A | 1" NPT | 4 | 3/8" NPT | 10.75" | 5.3 | Call For Availability | ||
| 8SSHT-4-4-2-A | 1" NPT | 4 | 1/2" NPT | 10.75" | 5.6 | Call For Availability | ||
| 8SSHT-6-3-2-A | 1" NPT | 6 | 3/8" NPT | 14.75" | 6.6 | Call For Availability | ||
| 8SSHT-6-4-2-A | 1" NPT | 6 | 1/2" NPT | 14.75" | 6.9 | Call For Availability | ||
| 8SSHT-8-3-2-A | 1" NPT | 8 | 3/8" NPT | 18.75" | 7.9 | Call For Availability | ||
| 8SSHT-8-4-2-A | 1" NPT | 8 | 1/2" NPT | 18.75" | 8.1 | Call For Availability |
