- 175°F (79.4°C) standard temperature rating
- 250°F (121°C) high temperature unit for higher temperature needs
- Mounting hardware is included
- CE Marked, housing rated IP 41
- 6ft. (1.8M) wire leads stripped and tinned
- Adjustable actuation between .187" and .250" from the mold base.
- Installation with 2 screw holes
- Helps prevent costly mold damage

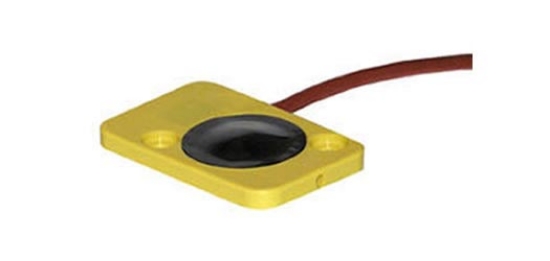

Liquid Resistant Limit Switch
PCS Company offers the Liquid Resistant Thinswitch™ Limit Switch that verifies the ejector plates return position before permitting the mold to close in the injection press. Mount the Thinswitch inside the ejector housing and simply wire it into the press control circuit to prevent tooling damage to slides or broken ejector pins. This Thinswitch is designed to be used where occasional water or oil spray is present. This liquid resistand switch has the same mounting pattern as the standard Thinswitch™.
| Item Number | Length | Width | Thickness | Temperature Rating F | Temperature Rating C | Body Material | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| HT-291-LR | 2.36" | 1.500" | 3/16" | 250° F | 121.1° C | Fiberglass-Reinforced Nylon | $180.83 | ||
| T-222-LR | 2.36" | 1.500" | 3/16" | 175° F | 79.4° C | Fiberglass-Reinforced Nylon | $164.78 |
