- UNC threads: UNC 3/8’’-16 → UNC 2"
- Usable for any kind of lifting operation (straight lifts, with angle, turning, rotating)
- Safety factor 4:1 and 5:1
- Individual traceability number
- Operating temperature: -20°C to 200°C / -4°F to 392°F
- Clear markings (CE, WLL, tightening torque)
- Anti-corrosion coating (zinc coating) on bolt and base
- Built in anti-tribocorrosion grease, easy rotation under load
- Automatic orientation in the direction of pulling
- 7 year warranty when registered thru Codipro

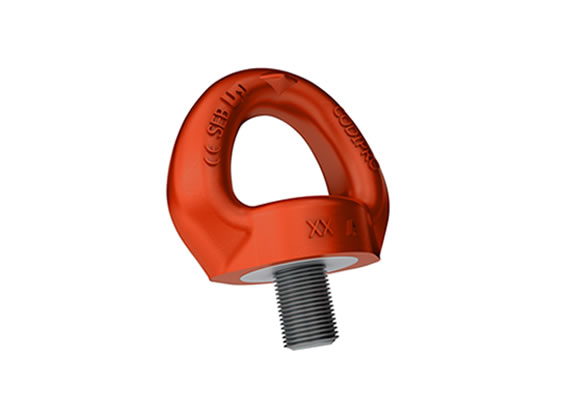

Codipro SEB Swivel Eyebolts - Inch
PCS Company offers Codipro's Swivel Eyebolts - The SEB lifting ring is a single swivel ring, with a rotating range of 360°. Equipped with "the Pyramid of Steel" that always guides it perfectly in the direction of the sling. It is specially designed for lifting, including rotating under load. Register your Codipro Eyebolt at Coditracer.
| Item Number | SF 5:1 WLL (t) | Thread Size | Thread Length L1 (mm) | Torque (Nm) | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| SEBU038UP | 1200 | UNC 3/8"-16 | 17 | 8 | $63.38 | ||
| SEBU050UP | 1800 | UNC 1/2"-13 | 21 | 12 | $64.40 | ||
| SEBU058UP | 3200 | UNC 5/8"-11 | 27 | 40 | $98.96 | ||
| SEBU075UP | 4750 | UNC 3/4"-10 | 30 | 80 | $102.16 | ||
| SEBU100UP | 7500 | UNC 1"-8 | 36 | 125 | $180.21 | ||
| SEBU125UP | 12200 | UNC 1 1/4" - 7 | 45 | 200 | $192.00 | ||
| SEBU150UP | 20000 | UNC 1 1/2" - 6 | 62 | 240 | $442.85 | ||
| SEBU200UP | 33000 | UNC 2" - 4.5 | 70 | 450 | $802.75 |
