- Made in USA
- 4140 Toolsteel
- Hardened to 34-36 Rc
- Polished front & rear sealing areas ensures proper seating
- General Purpose internal design is standard
- Full Taper internal design are offered as a special
- Nozzle heater bands sold separately

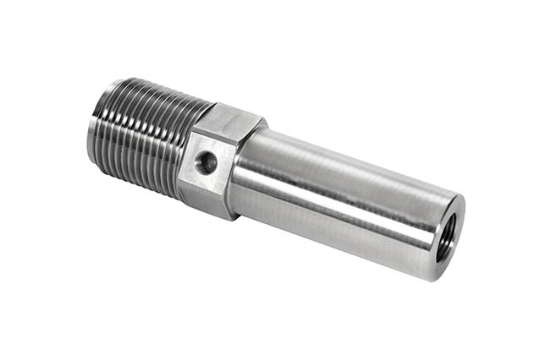

Externally Heated Nozzle Bodies
PCS Company’s Externally Heated Nozzle Bodies are made to the highest quality standards that feature hand polished internal flow paths and seating areas. The PCS Externally Heated Nozzle Bodies are made of 4140 tool steel or equivalent and are 100% inspected upon completion. We stock many popular sizes for numerous machine manufacturers and can built an externally heated nozzle body to your specifications with. Take advantage of the custom nozzle bodies by specifying features such as thermocouple hole sizes, lengths, rear openings and in-melt thermocouples. View more information on custom externally heated nozzle bodies.
| Item Number | Press Mfg | O.A.L. | Thread Size | Rear Opening | Female Thread | Heater Band | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| B512575-SP | Van Dorn | 5 | 1-1/4-12 | 3/4 | 7/8-14 | 1 1/2 x 1 1/2 | $85.00 | ||
| B5NIS2015 | Nissei | 5 | 20 | 8 | 7/8-14 | 1 1/2 x 1 1/2 | $165.00 | ||
| B712575 | Van Dorn | 7 | 1-1/4-12 | 3/4 | 7/8-14 | 1 1/2 x 3 | $90.00 | ||
| B712575-SP | Van Dorn | 7 | 1-1/4-12 | 3/4 | 7/8-14 | 1 1/2 x 3 | $118.00 | ||
| B7175100 | Engel | 7 | 1-3/4-8 | 1 | 7/8-14 | 1 1/2 x 3 | $115.00 | ||
| B7175125 | Van Dorn | 7 | 1-3/4-8 | 1-1/4 | 7/8-14 | 1 1/2 x 3 | $175.00 | ||
| B717575 | Milacron | 7 | 1-3/4X8 | 3/4 | 7/8-14 | 1 1/2 x 3 | $175.00 | ||
| B7HAI45X4 | Haitian | 7 | 45 | 20 | 7/8-14 | 1 1/2 x 3 | $195.00 | ||
| B7NIS60X2 | Nissei | 7 | 60 | 25 | 7/8-14 | 1 1/2 x 3 | $210.00 | ||
| B7SUM48X2 | Sumitomo | 7 | 48 | 32 | 7/8-14 | 1 1/2 x 3 | $145.00 | ||
| B8NIS402 | Nissei | 8 | 40 | 20 | 7/8-14 | 1 1/2 x 4 | $225.50 | ||
| B8NIS502 | Nissei | 8 | 50 | 25 | 7/8-14 | 1 1/2 x 4 | $235.00 | ||
| B912575 | Van Dorn | 9 | 1-1/4-12 | 3/4 | 7/8-14 | 1 1/2 x 5 | $130.00 | ||
| B9175125 | Van Dorn | 9 | 1-3/4-8 | 1-1/4 | 7/8-14 | 1 1/2 x 5 | $199.00 |
