- Allows access to the inner cooling tube from the end of the assembly
- Positive adjustment of inner tube at assembly
- High flow design for maximum cooling rates
- Direct replacements for existing units
- Assemblies include brass head, 12" High Flow Piston Tube and 2" long Stainless Pipe Nipple
- Easy tube installation and removal without removing the whole assembly
- Unit of Measure - Inch

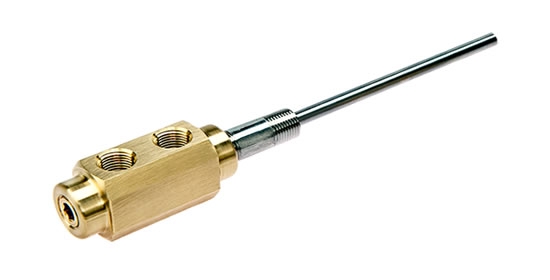

Rear Load Nipple Type Cascade Assemblies
PCS Company's Rear Nipple Type Cascade Assembly is supplied with a 12" High Flow Piston Tube and 2" long Stainless Steel Pipe Nipple. This cascade design if for maximum cooling rates. Easy adjustment and maintenance of the inner tube.
| Item Number | In/Out Pipe Size (NPT) | Mold Nipple (NPT) | High Flow Tube O.D. | Tube Thread (NPT) | Hex Size | E | C | A | L Length | Tube Access Size (NPT) | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 141N-4-RL | 1/4 | 1/4 | 1/4 | 1/4 | 1 | .781 | 1 | 7/16 | 2.562 | 1/4 | $28.26 | ||
| 16N-RL | 1/16 | 1/8 | 3/16 | 1/16 | 3/4 | .500 | 5/8 | 9/32 | 1.625 | 1/8 | $26.08 | ||
| 181N-RL | 1/8 | 1/8 | 3/16 | 1/16 | 7/8 | .609 | 1 | 9/32 | 2.218 | 1/8 | $26.08 | ||
| 186N-RL | 1/8 | 1/8 | 3/16 | 1/16 | 7/8 | .609 | 11/16 | 9/32 | 1.906 | 1/8 | $25.66 | ||
| 381N-4-RL | 1/4 | 3/8 | 5/16 | 5/16 | 1 | .781 | 1 | 7/16 | 2.562 | 3/8 | $30.23 |
