- 300°F - Maximum operating temperature
- 150psi maximum pressure rating
- One piece / no seams
- Brass end plugs included ( NPT only )
- Anodized Red and Blue
- Pre-drilled mounting holes (3/4" Profile - .180" thru hole and all others - .280" thru hole)

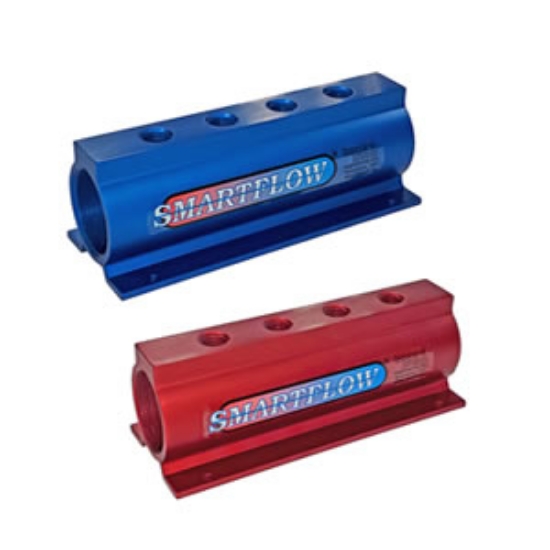

Smartflow® 2" Aluminum Water Manifolds
PCS Company offers Smartflow® 2" Aluminum Manifolds which are constructed from unique extruded aluminum, machined precisely and then anodized for corrosion resistance. These manifolds are standardized in both red and blue to denote supply and return lines. Choose from a wide selection of standard Aluminum Manifolds or contact PCS for a custom manifold. The 2" manifolds are supplied with pre-drilled mounting holes and bolts for ease of installation.
*NEW* - Use the Manifold Builder to configure your 2” Aluminum Water Manifold with 3D Interactive visualization and CAD downloads, or for an accurate and fast quote.
| Item Number | Inlet - Outlet Size NPT | Number of Ports | Port Size NPT | Port Location | Color | A | B | C | Overall Length D | Weight (lbs.) | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16SA-10-4-2-Y | 2" | 10 | 1/2" | Center | Red | 2.0" | 2.0" | 1.0" | 22" | 6.4 | $238.00 | ||
| 16SA-10-4-2-Z | 2" | 10 | 1/2" | Center | Blue | 2.0" | 2.0" | 1.0" | 22" | 6.4 | $238.00 | ||
| 16SA-12-4-2-Y | 2" | 12 | 1/2" | Center | Red | 2.0" | 2.0" | 1.0" | 26.0" | 7.5 | $272.00 | ||
| 16SA-12-4-2-Z | 2" | 12 | 1/2" | Center | Blue | 2.0" | 2.0" | 1.0" | 26.0" | 7.5 | $272.00 | ||
| 16SA-16-4-2-Y | 2" | 16 | 1/2" | Center | Red | 2.0" | 2.0" | 1.0" | 34.0" | 9.9 | $338.00 | ||
| 16SA-16-4-2-Z | 2" | 16 | 1/2" | Center | Blue | 2.0" | 2.0" | 1.0" | 34.0" | 9.9 | $338.00 | ||
| 16SA-4-4-2-Y | 2" | 4 | 1/2" | Center | Red | 2.0" | 2.0" | 1.0" | 10.0" | 2.9 | $139.00 | ||
| 16SA-4-4-2-Z | 2" | 4 | 1/2" | Center | Blue | 2.0" | 2.0" | 1.0" | 10.0" | 2.9 | $139.00 | ||
| 16SA-6-4-2-Y | 2" | 6 | 1/2" | Center | Red | 2.0" | 2.0" | 1.0" | 14.0" | 4.1 | $172.00 | ||
| 16SA-6-4-2-Z | 2" | 6 | 1/2" | Center | Blue | 2.0" | 2.0" | 1.0" | 14.0" | 4.1 | $172.00 | ||
| 16SA-8-4-2-Y | 2" | 8 | 1/2" | Center | Red | 2.0" | 2.0" | 1.0" | 18.0" | 5.2 | $204.00 | ||
| 16SA-8-4-2-Z | 2" | 8 | 1/2" | Center | Blue | 2.0" | 2.0" | 1.0" | 18.0" | 5.2 | $204.00 |
