- Off the shelf availability
- Finish ground +.015"-.000"

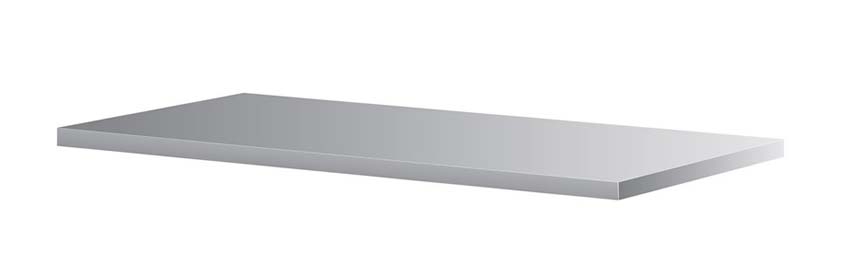

Ejector Retainer Plate
Finish Ground Machined Ejector Retainer Plates are interchangeable and available in plate thicknesses and frame sizes range across the entire line of PCS standard mold bases in 1050 (#1) steel, and some standard mold base sizes in #7 stainless steel.
| Item Number | Frame Size | Width | Length | Thickness | Material | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|
| 1ER-1012-04N | 9-7/8 x 11-7/8 | 6.875 | 11.865 | 0.5 | Steel - 1 | $72.90 | ||
| 1ER-1016-04N | 9-7/8 x 16 | 6.875 | 15.99 | 0.5 | Steel - 1 | $93.05 | ||
| 1ER-108-04N | 9-7/8 x 8 | 6.875 | 7.99 | 0.5 | Steel - 1 | $63.77 | ||
| 1ER-1112-04N | 10-7/8 x 12 | 7.375 | 11.99 | 0.5 | Steel - 1 | $85.06 | ||
| 1ER-1114-04N | 10-7/8 x 14 | 7.375 | 13.99 | 0.5 | Steel - 1 | $95.01 | ||
| 1ER-1118-04N | 10-7/8 x 18 | 7.375 | 17.99 | 0.5 | Steel - 1 | $110.75 | ||
| 1ER-1212-04N | 11-7/8 x 12 | 8.375 | 11.99 | 0.5 | Steel - 1 | $84.36 | ||
| 1ER-1215-04N | 11-7/8 x 15 | 8.375 | 14.99 | 0.5 | Steel - 1 | $92.25 | ||
| 1ER-1220-04N | 11-7/8 x 20 | 8.375 | 19.99 | 0.5 | Steel - 1 | $124.75 | ||
| 1ER-1223-05N | 11-7/8 x 23-1/2 | 8.375 | 23.49 | 0.625 | Steel - 1 | $147.55 | ||
| 1ER-1315-05N | 13-3/8 x 15 | 9.5 | 14.99 | 0.625 | Steel - 1 | $115.38 | ||
| 1ER-1318-05N | 13-3/8 x 18 | 9.5 | 17.99 | 0.625 | Steel - 1 | $132.27 | ||
| 1ER-1321-05N | 13-3/8 x 20-3/4 | 9.5 | 20.74 | 0.625 | Steel - 1 | $146.85 | ||
| 1ER-1326-05N | 13-3/8 x 26 | 9.5 | 25.99 | 0.625 | Steel - 1 | $178.68 | ||
| 1ER-1518-05N | 14-7/8 x 17-7/8 | 11 | 17.865 | 0.625 | Steel - 1 | $137.71 | ||
| 1ER-1524-05N | 14-7/8 x 23-3/4 | 11 | 23.74 | 0.625 | Steel - 1 | $169.53 | ||
| 1ER-1616-05N | 15-7/8 x 16 | 12 | 15.99 | 0.625 | Steel - 1 | $149.40 | ||
| 1ER-1620-05N | 15-7/8 x 20 | 12 | 19.99 | 0.625 | Steel - 1 | $158.42 | ||
| 1ER-1623-05N | 15-7/8 x 23-1/2 | 12 | 23.49 | 0.625 | Steel - 1 | $182.96 | ||
| 1ER-1626-05N | 15-7/8 x 26 | 12 | 25.99 | 0.625 | Steel - 1 | $191.87 | ||
| 1ER-1629-05N | 15-7/8 x 29-1/2 | 12 | 29.49 | 0.625 | Steel - 1 | $229.25 | ||
| 1ER-1818-05N | 17-7/8 x 18 | 14 | 17.99 | 0.625 | Steel - 1 | $171.85 | ||
| 1ER-1820-05N | 17-7/8 x 20 | 14 | 19.99 | 0.625 | Steel - 1 | $185.39 | ||
| 1ER-1823-05N | 17-7/8 x 23-1/2 | 14 | 23.49 | 0.625 | Steel - 1 | $212.01 | ||
| 1ER-1826-05N | 17-7/8 x 26 | 14 | 25.99 | 0.625 | Steel - 1 | $221.03 | ||
| 1ER-1924-05N | 19-1/2 x 23-3/4 | 15.625 | 23.74 | 0.625 | Steel - 1 | $227.97 | ||
| 1ER-1929-05N | 19-1/2 x 29-1/2 | 15.625 | 29.49 | 0.625 | Steel - 1 | $267.32 | ||
| 1ER-2424-05N | 23-3/4 x 23-3/4 | 19.875 | 23.74 | 0.625 | Steel - 1 | $266.05 | ||
| 1ER-2429-05N | 23-3/4 x 29-1/2 | 19.875 | 29.49 | 0.625 | Steel - 1 | $320.89 | ||
| 1ER-2435-05N | 23-3/4 x 35-1/2 | 19.875 | 35.49 | 0.625 | Steel - 1 | $368.12 | ||
| 1ER-812-04N | 7-7/8 x 11-7/8 | 5.25 | 11.865 | 0.5 | Steel - 1 | $68.79 | ||
| 1ER-88-04N | 7-7/8 x 7-7/8 | 5.25 | 7.865 | 0.5 | Steel - 1 | $59.14 | ||
| 7ER-1012-04N | 9-7/8 x 11-7/8 | 6.875 | 11.865 | 0.5 | Steel - 7 Stainless | $182.52 | ||
| 7ER-108-04N | 9-7/8 x 8 | 6.875 | 7.99 | 0.5 | Steel - 7 Stainless | $148.29 | ||
| 7ER-1114-04N | 10-7/8 x 14 | 7.375 | 13.99 | 0.5 | Steel - 7 Stainless | $220.54 | ||
| 7ER-1212-04N | 11-7/8 x 12 | 8.375 | 11.99 | 0.5 | Steel - 7 Stainless | $215.46 | ||
| 7ER-1215-04N | 11-7/8 x 15 | 8.375 | 14.99 | 0.5 | Steel - 7 Stainless | $258.55 | ||
| 7ER-812-04N | 7-7/8 x 11-7/8 | 5.25 | 11.865 | 0.5 | Steel - 7 Stainless | $162.23 | ||
| 7ER-88-04N | 7-7/8 x 7-7/8 | 5.25 | 7.865 | 0.5 | Steel - 7 Stainless | $144.49 |
