- Simple Compact Design
- Easy Installation
- Minimal space required for installation and access
- Maximum working temperature of 150°C

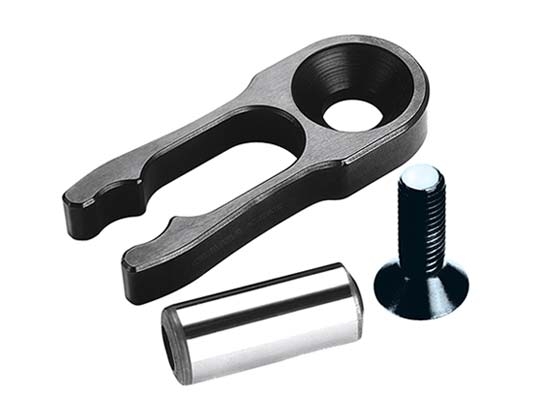

Slide Retainers (Metric)
Slide Retainers mechanically hold a slide in the retracted position upon mold opening. Less machining is required for installation when compared with similar products, reducing costs and downtime.
Item Number | A | B | C | E | G | F | CAD Files | Price (USD) | Quantity |
---|---|---|---|---|---|---|---|---|---|
RC 123006 | 12 | 30 | 6 X 20 | 21 | 4 | 5 | $41.63 | ||
RC 164008 | 16 | 40 | 8 X 20 | 28 | 5 | 6 | $54.08 | ||
RC 205010 | 20 | 50 | 10 X 24 | 34 | 6 | 8 | $61.16 | ||
RC 246012 | 24 | 60 | 12 X 32 | 42 | 7 | 10 | $73.08 | ||
RC 328012 | 32 | 80 | 16 X 40 | 56 | 9 | 12 | $95.92 | ||
RC 328016 | 32 | 80 | 16 X 40 | 56 | 9 | 16 | $105.47 |
