- 4 Flute Coated Solid Carbide
- Extra long shanks for hard to reach machining
- TiAlN Coated for extended tool life
- Premium micro grain carbide
- H6 Shank tolerance for heat shrink applications
- Cutting diameter tolerance +.0000 - .0015
- Shorter flute length for maximum strength
- 30° helix general purpose ball nose

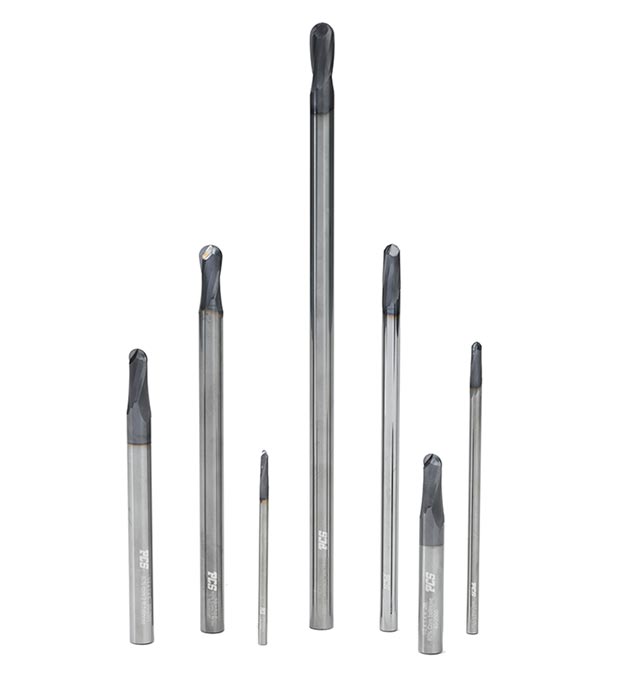

Ball Nose Extended Reach End Mill
Extended Reach 4 Flute Coated Solid Carbide End Mills - Ball Nose
| Item Number | Flute Diameter | Flute Length | Overall Length | Shank Diameter | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| 51-4125P | 1/8 | 1/2 | 4 | 0.125 | $23.84 | ||
| 51-4126P | 1/8 | 1/2 | 6 | 0.125 | $26.23 | ||
| 51-4187P | 3/16 | 5/8 | 4 | 0.1875 | $28.39 | ||
| 51-4188P | 3/16 | 5/8 | 6 | 0.1875 | $30.66 | ||
| 51-4250P | 1/4 | 3/4 | 4 | 0.25 | $32.93 | ||
| 51-4251P | 1/4 | 3/4 | 6 | 0.25 | $37.47 | ||
| 51-4312P | 5/16 | 7/8 | 4 | 0.3125 | $44.29 | ||
| 51-4313P | 5/16 | 7/8 | 6 | 0.3125 | $51.10 | ||
| 51-4375P | 3/8 | 7/8 | 4 | 0.375 | $53.37 | ||
| 51-4376P | 3/8 | 7/8 | 6 | 0.375 | $60.18 | ||
| 51-4500P | 1/2 | 1 | 4 | 0.5 | $71.54 | ||
| 51-4501P | 1/2 | 1 | 6 | 0.5 | $85.17 | ||
| 51-4626P | 5/8 | 1-1/4 | 6 | 0.625 | $126.05 | ||
| 51-4751P | 3/4 | 1-1/2 | 6 | 0.75 | $185.10 |
