- Unit of Measure - Inch
- Perpendicular inlet/outlet connections
- Pipe plugs not required
- Used exclusively with High-Flow Tubes
- Ideal for use with thin mold plates
Compact Cascade Assemblies

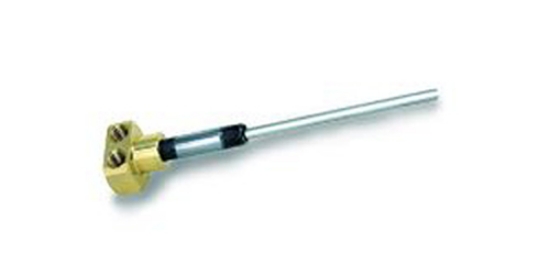

Compact Cascade Assemblies provide maximum cooling rates with improved design and high flow tubes. In/Out connections are positioned sideways for mounting in tight spaces or thin mold plates. Assemblies include brass head, 12" high flow tube and 2" pipe nipples.
| Item Number | A Inlet - Outlet Hole Locations | B Head Thickness | C Outlet Hole Spread | D Overall Length | E Pilot Diameter | F Thread Depth | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| ET1214 | 3/8 | 3/4 | 1 | 1-3/4 | 1-3/16 | 0.54 | $33.08 | ||
| ET1414 | 3/8 | 3/4 | 3/4 | 1-1/2 | 7/8 | 0.54 | $27.72 | ||
| ET1418 | 5/16 | 5/8 | 11/16 | 1-1/4 | 3/4 | 0.41 | $26.07 | ||
| ET1816 | 7/32 | 7/16 | 1/2 | 1 | 5/8 | 0.33 | $26.07 | ||
| ET3814 | 3/8 | 3/4 | 3/4 | 1-1/2 | 1 | 0.54 | $29.24 |
