- Unit of Measure - Metric
- Use CLP oils according to DIN 515524
- Hardness 54-56 HRC
- Stainless steel outer bushing
- Anodized aluminum cage

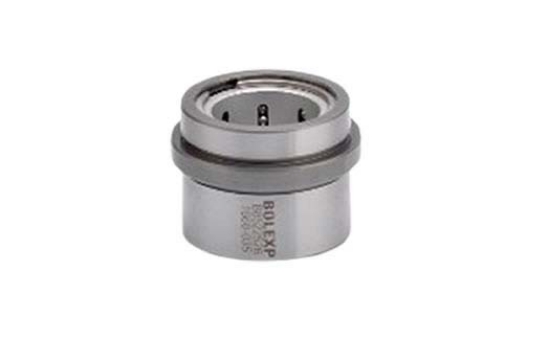

Stainless Steel Ball Bushing - B852
BOLEXP stainless steel ball guidance bushes are made up of an outer casing of stainless steel for rolling, hardened and ground, which holds fixed inside an aluminum cage for guiding the balls running along the cage. The translation system consists of several rows of precision balls circulating endlessly. Greater load capacity is achieved through translation motion where the ball right at a slight angle enlarging the contact area with the leader pin. We offer several metric ball guidance bushings products to best fit your application requirements. Choose from other ball guidance bushings such as Top-Collar, Collar, Cylindrical and FreeLub along with a wide selection of metric leader pins.
| Item Number | d1 I.D. | d2 O.D. | L Shoulder Length | s Collar Length | d3 Head Diameter | a Head Thickness | Ball Diameter | Number of Lines | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|
| B8521222 | 12 | 24 | 22 | 8 | 28 | 6 | 3 | 5 | $86.56 | ||
| B8521622 | 16 | 28 | 22 | 8 | 32 | 6 | 3 | 6 | $88.05 | ||
| B8522026 | 20 | 32 | 26 | 9 | 36 | 6 | 3 | 6 | $99.14 | ||
| B8522526 | 25 | 40 | 26 | 9 | 45 | 6 | 3 | 8 | $109.85 |
