- Bushings are stocked to dimensions & tolerances shown
- Eliminates galling to leader pins
- Keeps ejector assembly aligned
- Extends the life of ejection components
- Performs better than steel bushings
- Contains internal grease groove

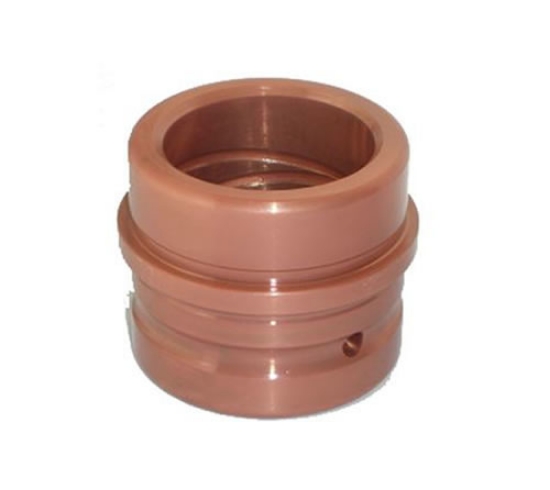

Guided Ejector Bushings - Bronze Plated
PCS Bronze Plated Guided Ejector Bushings are available in nominal diameters ranging from 3/4" to 2". Included internal grease grooves help prevent galling which aids in a smooth operation.
| Item Number | M I.D. | F Rib O.D. | G Lube Hole Location | H Press Fit O.D. | L Overall Length | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|
| GEB-100 | 1.001 | 1.552 | .62 | 1.3755 | 1.75 | $30.70 | ||
| GEB-125 | 1.251 | 1.802 | .62 | 1.6255 | 1.75 | $31.81 | ||
| GEB-150 | 1.501 | 2.177 | .62 | 2.0005 | 1.75 | $36.73 | ||
| GEB-200 | 2.001 | 2.687 | .80 | 2.5005 | 2.25 | $69.82 | ||
| GEB-750 | .751 | 1.302 | .56 | 1.1255 | 1.50 | $28.37 | ||
| GEB-875 | .876 | 1.427 | .56 | 1.2505 | 1.50 | $29.14 |
