- Acid proof pump and fittings
- Innovative flow reversal valve for faster cleaning
- Compact design for easy transport and storage
- Integrated fresh water flush
- Venting cap for closed systems
- CE Certified
- Pumps: Centrifugal
- Run dry, 21 GPM pump
- Input Power: 8.6 amps, 115 V, 60 Hz AC
- Dimensions: 35" high x 15" wide x 23" deep

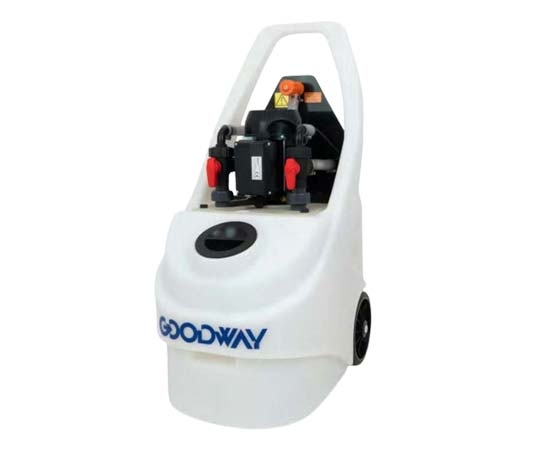

Scale Removal System, 21 GPM w/15 Gal. Tank
PCS Company offers Goodway® GDS-C92-FWF Scale Removal System. Constructed of heavy-duty polyethylene and acid-proof components, this descaling unit is designed for years of use in industrial applications. The secret to their success at removing scale lies in the innovative Flow Reversal Valve. During the descaling process, limescale dissolves and creates foam and gas, which acts as a barrier to further scale reduction. Using the Flow Reversal Valve allows the foam and gas to discharge into the tank, eliminating the barrier effect and considerably speeding up the descaling process. The GDS-C92-FWF feature of a freshwater flush, adds two additional ports, a freshwater inlet port and a flush or dump outlet port. These additional ports now provide operators a safe and seamless way to allow fresh water to be added, or discharge dumped without the removal of circulation hoses during the descaling process. Simply adjust your valves to the dump position, open the water inlet valve, and the flushing process begins. Clean, safe, and simple. Each unit is self-priming and safely contains chemicals within its integral tank, allowing for maximum user-friendliness. The GDS-C92 will take care of small to medium injection and die cast molds, boilers, chillers, heat exchangers, etc. This system uses a 21-gallon per minute (GPM) flow rate. Note: Check local, state, and federal rules for the disposal of any used chemical/water in your area.
Loading...
Item Number  |
GPM |
Tank Capacity |
Motor Power |
Input Power |
Height |
Width |
Depth |
Weight (dry) |
CAD Files |
Price (USD) |
Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GDS-C92-FWF | 21 | 15 | 3/4 HP | 8.6 Amps, 115V. 60 Hz AC | 35" | 15" | 23" | 50 lbs | $2,995.00 |
