04H20

$2.69

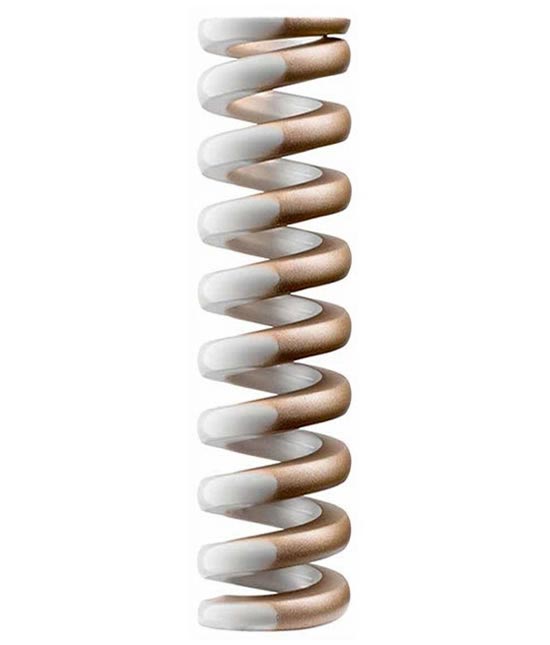

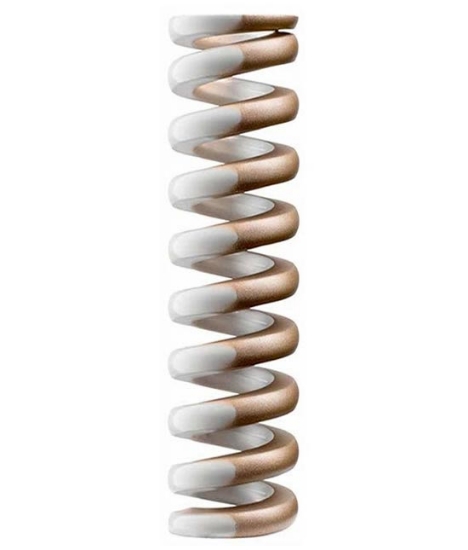

PCS Company's Heavy Duty Die Spring, color coded gold with a silver stripe

Qty:

Color Coded - Gold / Silver
E-Coat provides corrosion resistance
3D CAD files
Made of hardened alloy steel
Maximum Temperature Rating of 482F or 250C
For Optimum Life - 15% Free Length
For Long Life - 20% Free Length
Maximum Operating Deflection - 25% Free Length
Maximum Deflection - 30% Free Length

The actual product may differ slightly from the image displayed on the website.

RHGO10-051, SHD1008, 105-108, 343-0608

Product specifications

DH Hole Diameter	3/8
DH Tolerance (H15)	+.0228" / -0
Dd Rod Diameter	3/16
L0 Free Length	2
L0 Tolerance	+.093 / -0
R Spring Rate +/- 10% (lbs/.10 Inch Deflec.)	6.2
A 15% Deflection (Inch)	0.3
A Load at 15% Deflection (lbs)	18.6
B 20% Deflection (Inch)	0.4
B Load at 20% Deflection (lbs)	24.8
C 25% Deflection (Inch)	0.5
C Load at 25% Deflection (lbs)	31
