- Unit of Measure - Inch
- Outer bushing made of steel
- Bronze inner cage for wear resistance
- High precision ball bearings: 60-62 HRc

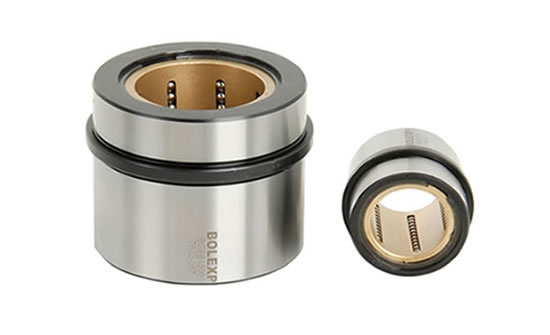

Ball Guided Ejection Bushing
BOLEXP ball guidance bushings are made up of an outer casing of steel for rolling, hardened and ground, which holds fixed inside a high-resistance bronze cage for guiding the balls. The translation system consists of several rows of precision balls circulating endlessly.
| Item Number | Nominal I.D. | Actual I.D. | Press Fit O.D. +.0005 / -.0000 | Slip Fit O.D. +000 / - .001 | Rib O.D. + .000 / -.030 | O.A.L. + .000 / -.030 | Ejector Plate Length +.000 / -.030 | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| 05BGEB0750 | 3/4 in | 0.751 | 1.2505 | 1.249 | 1.427 | 1.5 | 1 | $60.97 | ||
| 05BGEB0875 | 7/8 in | 0.876 | 1.3755 | 1.374 | 1.552 | 1.75 | 1.12 | $66.90 | ||
| 05BGEB1000 | 1 in | 1.001 | 1.6255 | 1.624 | 1.802 | 1.75 | 1.12 | $72.22 | ||
| 05BGEB1250 | 1 - 1/4 in | 1.251 | 2.0005 | 1.999 | 2.177 | 1.75 | 1.12 | $88.43 | ||
| 05BGEB1500 | 1 - 1/2 in | 1.501 | 2.5005 | 2.499 | 2.687 | 2.25 | 1.62 | $101.56 |
