FTT-0809-203

$840.82

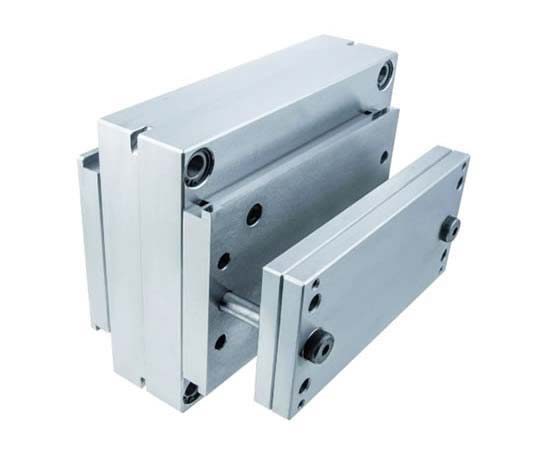

FITS 0809 T-STYLE

Qty:

Unit of Measure - Inch
A & B Plates #3 Steel / All others #2 Steel
Guided Ejection included at no extra charge
Clamp Slots used in solid units for greater clamping stability and larger cavities and cores
Compatible with M.U.D.® style units
To remove guided ejection order as special
Pry slots added to parting line
Compatible with U Frames
Compatible with F.I.T.S.® and MUD® U-Frames

The actual product may differ slightly from the image displayed on the website.

0809TLU203-3

Product specifications

A Plate Thickness	1.251
B Plate Thickness	1.251
Guided Ejection	Yes
Series	08/09
