- Unit of Measure - Inch
- 4140 steel material
- For use with Round Tapered Interlocks
- FHCS Included

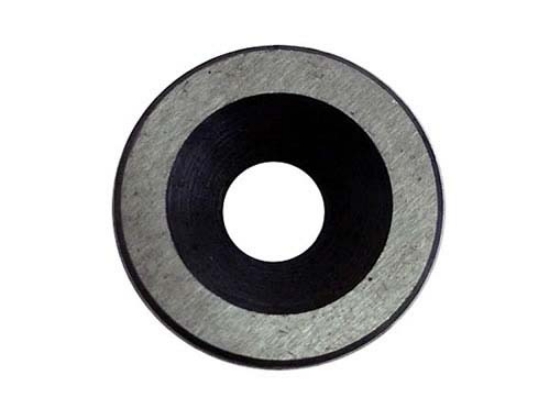

Shoulder Plates For Tapered Interlocks
Shoulder Plates are designed to work specifically with Tapered Round Interlocks. Tapered Round Interlocks provide positive alignment between mold halves. These locks are manufactured from 4140 steel and are hardened and precision ground to ensure interchangeability. Tapered Round Locks maintain alignment of the mold while allowing for thermal expansion.
| Item Number | D Outside Diameter | T Thickness | Mounting Screw | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|
| SP-05 | 11/16" | 3/16" | 10-24 x 1/2" | $5.79 | ||
| SP-07 | 1" | 3/16" | 1/4-20 x 1/2" | $5.72 | ||
| SP-10 | 1-3/16" | 3/16" | 1/4-20 x 1/2" | $5.98 | ||
| SP-15 | 1-11/16" | 1/4" | 5/16-18 x 1/2" | $7.90 |
